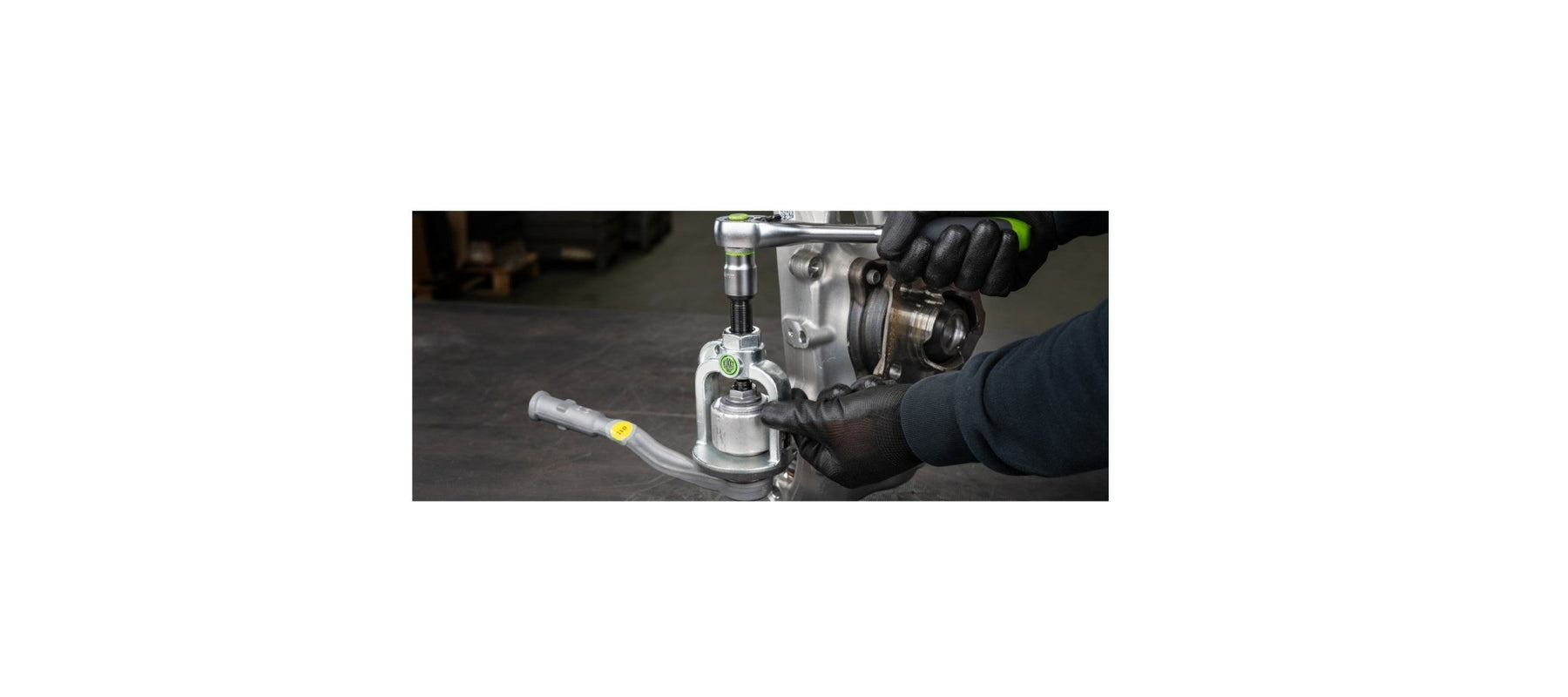

How to Use a Ball Joint Press. A Step-By-Step Guide

A ball joint press is a tool with cups/adapters that pushes a press-fit joint out of, or into, a control arm or knuckle. It can be either a C-frame or bell shaped press. Essentially, the cups support the arm while the screw or spindle drives only on the joint's shell. Some vehicles use bolt-in or factory-riveted joints that come out with fasteners or drilling and don't need pressing. So, confirm the joint style first.

Listen to this blog post:

Types of ball joint presses:

• Manual Screw-Type: Hand-driven C-frame or bell shaped with an acme screw, or spindle, and interchangeable cups or different sized openings. Works on most passenger suspensions. Slower but very controlled. Commonly turned with a ratchet or impact while keeping the frame square.
• Hydraulic Press/Separator: Uses a hydraulic ram to deliver high force with little effort. Suits seized or heavy-duty assemblies and commercial vehicles. Many splitters accept a manual screw or a ram. Used when screw load isn't enough. Most portable auto hydraulic systems run at 10,000 psi, and 10-ton rams are common.

Who Uses ball joint presses:

• Automotive mechanics & technicians.

• DIY'ers and enthusiasts.
• Heavy equipment mechanics
• Machine shop workers

Reasons why you'd need to replace a ball joint:

Ball joints wear over time, especially under heavy loads or rough driving conditions. Signs of failure include clunking noises, loose steering, uneven tire wear, or a torn dust boot. If left unchecked, a bad ball joint can cause loss of control.

Safety, Prep the Work Area & Tool:

• Safety: Put on safety glasses and gloves before you start. Note that proper eye protection can prevent 90% of work-related eye injuries.
• Prepping the work area: Work on level ground, raise the car, set it on jack stands, and chock the other wheels. Remove the wheel. Pull the brake caliper and rotor, and hang the caliper with a wire so the hose isn't stressed. Disconnect parts that block a straight press path, like the sway bar link, tie-rod end, or the knuckle pinch bolt, as your layout requires. Scrape rust from the joint area and bore, and soak it with penetrating fluid. Give it time to wick in.
• Prepping the Tool: Grease the forcing screw threads to avoid friction and galling. 85-90% of the torque you apply to a threaded fastener may be lost to friction rather than doing work.

Step-by-Step Pressing OUT the Old Joint:

1. Select the Right Tube/Adapters or Tool: Test-fit cups, or openings if using a bell-shaped tool, until one fully encircles the joint and bears only on the control arm surface. Never load the joint's shell, boot, or stud. Confirm the cup's bore is centered under the stud and that the tube seats flat on the arm.
2. Remove Snap Rings First; Inspect After: Before pressing, look for an external snap ring and remove it with snap-ring pliers. Some joints also have retainers hidden by rust or debris.
3. Align the C-Frame Squarely: Center the forcing screw on the joint's head and keep the stud centered in the receiving cup. Check from multiple angles to verify the C-frame is perpendicular to the arm before applying load. Misalignment can oval the bore or crack the arm. A ball joint press tool makes this alignment controlled and repeatable.
4. Apply Steady, Even Pressure to the Screw: Use a ratchet or breaker bar, and an impact only if your setup and cups are correct. Load the screw smoothly while watching for initial movement. Keep your hands clear of pinch points. Pause to check alignment. Expect an audible "pop" as the joint breaks free. Continue only if alignment stays true. After the joint is out, inspect the control arm bore for cracks, burrs, or distortion.

Step-by-Step Pressing IN the New Joint:

1. Choose Installation Cups That Push On the Outer Shell: Once again, pick cups that drive only on the joint's metal shell and clear the boot and stud. Test-fit until the receiving cup bears on the control arm, not the joint. Keep the stud centered in the cup's opening. That avoids boot cuts and crooked starts with a ball joint press tool.
2. Invert the C-Frame and Confirm Alignment: Flip the C-frame so it presses the joint in the correct direction, commonly upward. Jack the arm slightly if you need clearance for the frame. Don't forget to sight from several angles and keep the press square to the bore. The joint must stay centered as you load the tool.
3. Tighten Gradually and Verify Seating: Turn the screw smoothly and pause often. Check that the boot isn't pinched and the joint seats fully against the arm or knuckle. Remove the press and fit the new snap ring if the design uses one. Recheck that the joint is completely home before reassembly.

Choosing a Tool & Cost Note:

For most passenger vehicles, a manual C-frame kit does the job. Choose one with broad adapter coverage (2WD/4WD cups, XL frame for trucks) so that the ball joint press tool loads straight and clears boots. Hydraulic C-frame or ram add-ons cut effort on seized or heavy-duty suspensions but cost more. Typical DIY kits may run $70-$300. Hydraulic kits and 10-ton rams might land in the high hundreds to over $1,000, depending on system and pump. If you're comparing options, you can browse current ball joint press tool selections here.
