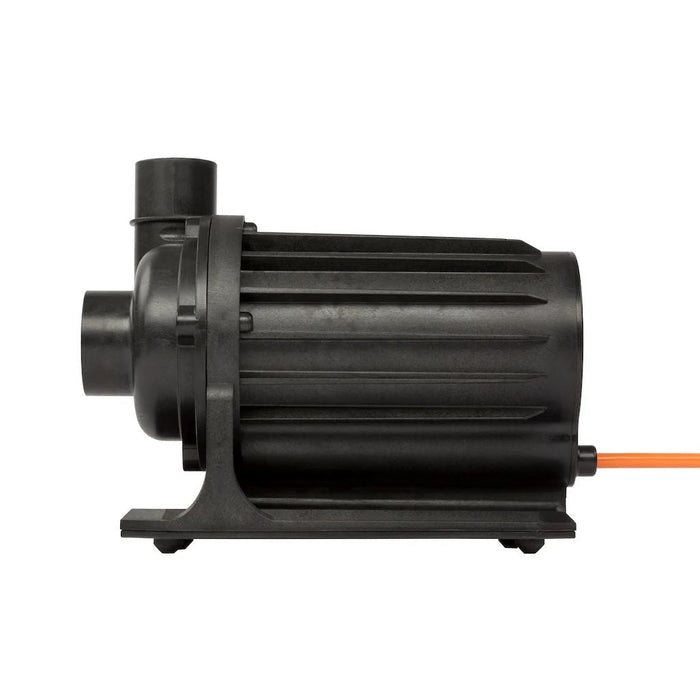

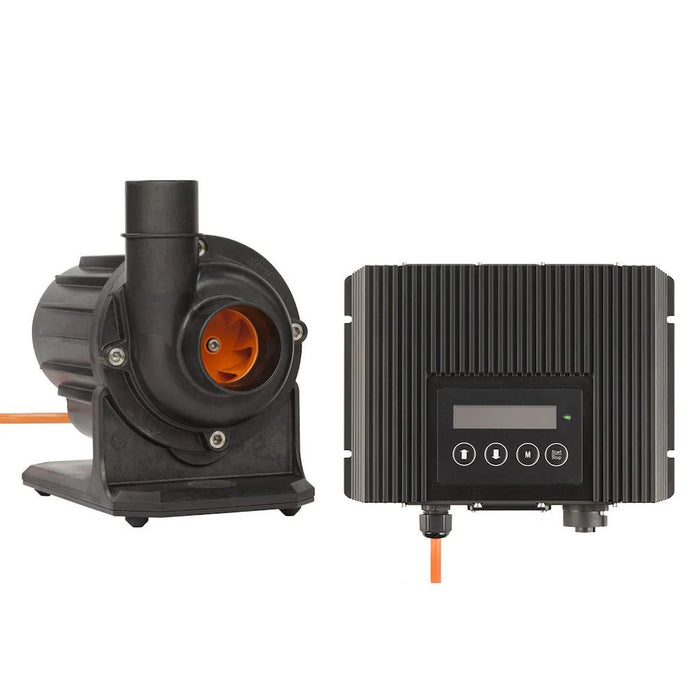

Abyzz A400 IPU DC Water Pump (4900 gph, 3m or 10M cable)
Highlights:
- Made In Germany.

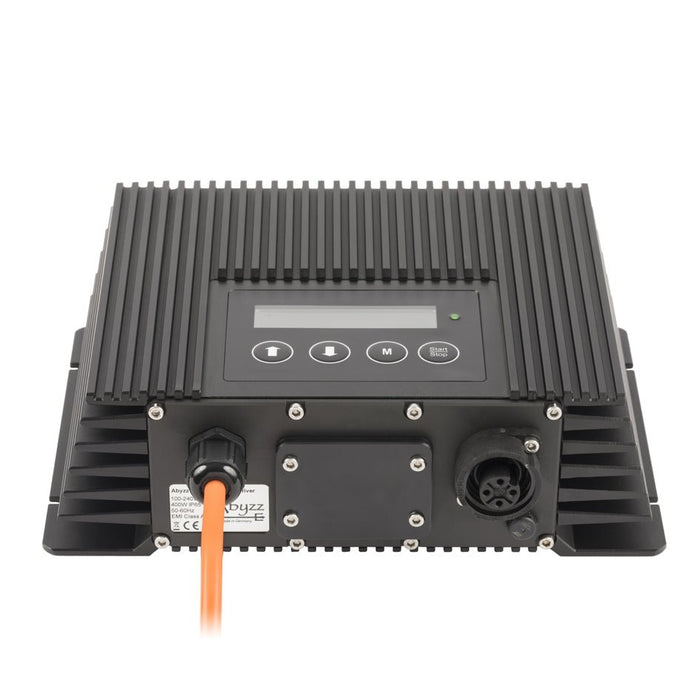

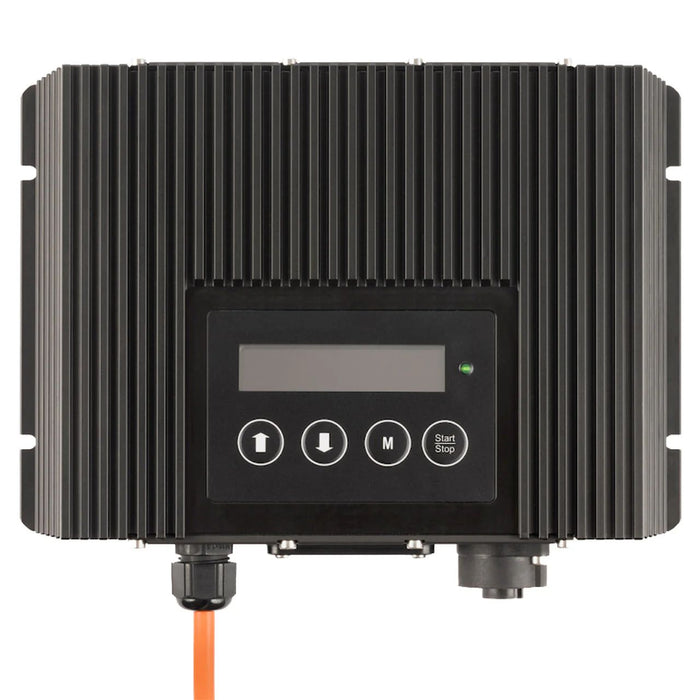

- Unlike the standard A400, the A400 IPU includes an IP65-rated splash-proof controller built to withstand the harsh aquatic environments like those around aquariums and ponds.
- Titanium impeller for maximum durability
- Programmable driver with sine-wave–controlled three-phase motor
- High motor efficiency of over 90%
- Adjustable pump speed for optimized performance and energy savings

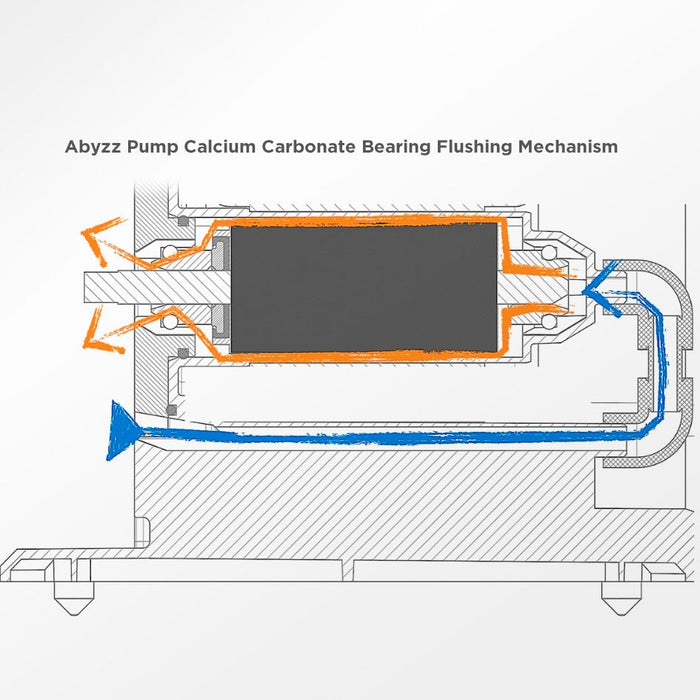

- Integrated bearing-flushing system to prevent calcification
- Silicon carbide bearings and hard-metal shaft for long service life and low maintenance
- Constructed from high-grade, long-lasting materials
- Engineered and manufactured in Germany by venotec
- NOTE: this pump is not self-priming and has to be mounted under water level. Mounting orientation must be horizontal.
Features:

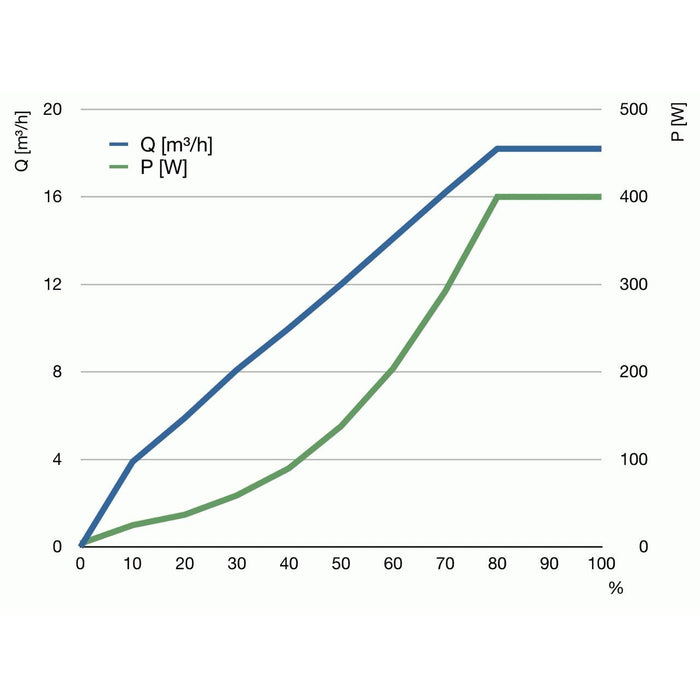

- Variable speed range (0–100%)
- Precise speed adjustment in steps of 0.1%.
- Integrated programming to generate waves, bursts, and random flow patterns with additional BOOSTMODE to override actual programming (MCFS – Menu Controlled Flow Sequencer)
- Comprehensive safety functions such as dry-run warning, temperature alert, overcurrent protection, and more
- Soft startup
- Auxiliary connector for peripheral devices (e.g., interfacing to external controllers)
- High-quality IP65 motor cable connector
- Low-noise operation
- Choice of 3 m or 10 m cable length
- 120V version
- Lockable power cord

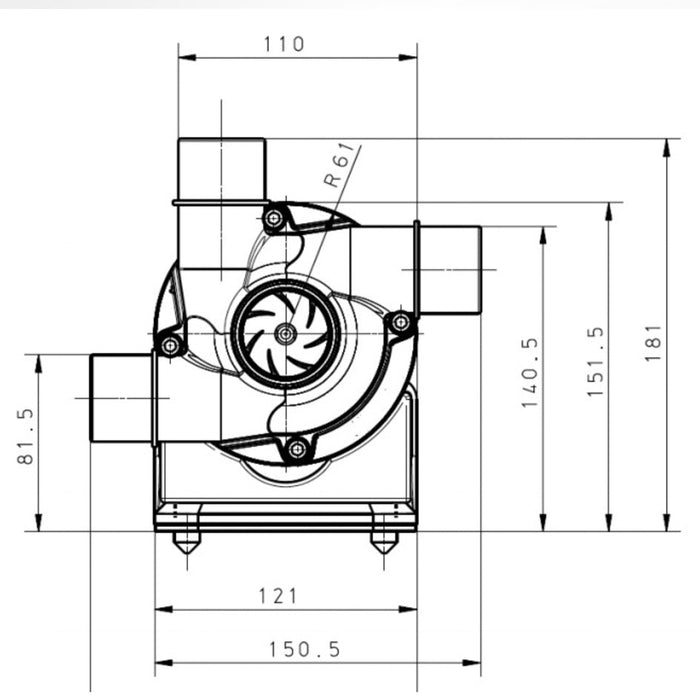

- Discharge can be placed in different directions
The Abyzz A400 IPU DC Water Pump introduces a high performance solution designed for aquatic systems that require strong output, precise control, and long lasting construction. Built with a titanium impeller and powered by a sine wave controlled three phase motor, the device provides smooth and efficient operation suited for both home and commercial environments. The IP65 rated splash proof controller strengthens its suitability for areas exposed to moisture, while adjustable speed settings and an integrated bearing flushing system support consistent performance and reduced calcification. Its horizontal mounting requirement ensures proper function when installed below water level.
This aquarium water pump incorporates silicon carbide bearings and a hard metal shaft, these premium materials are why the pump only requires minimal maintenance. Users can fine tune flow delivery through programming that enables waves, bursts, random sequences, and BOOSTMODE for additional control. Quiet operation and precise speed adjustment in 0.1 percent increments help refine performance. This electric water pump has multiple discharge orientations, a lockable power cord, and optional cable lengths improve installation flexibility, while the IP65 rated motor cable connector adds durability in moisture prone locations.
Equipped with safeguards that include dry run alerts, temperature warnings, overcurrent protection, and soft startup behavior, the device functions well in freshwater tanks, marine systems, ponds, creeks, and commercial displays. Its strong flow capability, detailed programming, and high grade materials support reliable operation across a wide range of aquatic environments. The Abyzz A400 IPU DC Water Pump
Specifications:
- Model: A400 IPU
- Alternate Part Number: 90003040
- Maximum flow rate: 6,200 gph (23,500 l/h)
- Rated flow rate: 4,900 gph (18,600 l/h)
- Delivery height: 41 ft (12.5 m)
- Max. discharge speed: 24.6 ft/s (7.5 m/s)
- Power consumption: 4–400 W
- Operating voltage: 120V
- Operating frequency: 50–60 Hz
- Maximum operating pressure: 17.4 psi (1.2 bar)
- Maximum immersion depth: 6.5 ft (2 m)
- Pump ambient temp.: 34–122°F (1–50°C)
- Driver ambient temp.: 32–86°F (0–30°C) (without additional cooling)
- Pump cable length (optional): 10/30 ft (3/10 m)

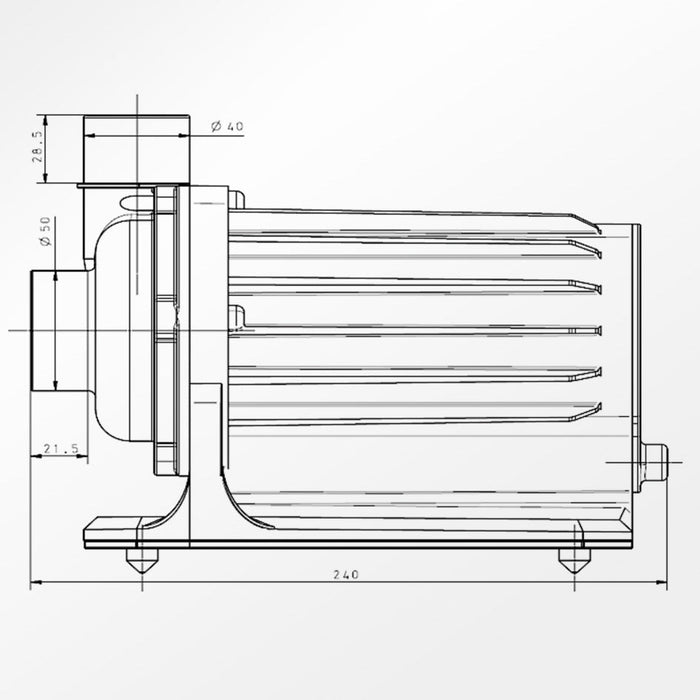

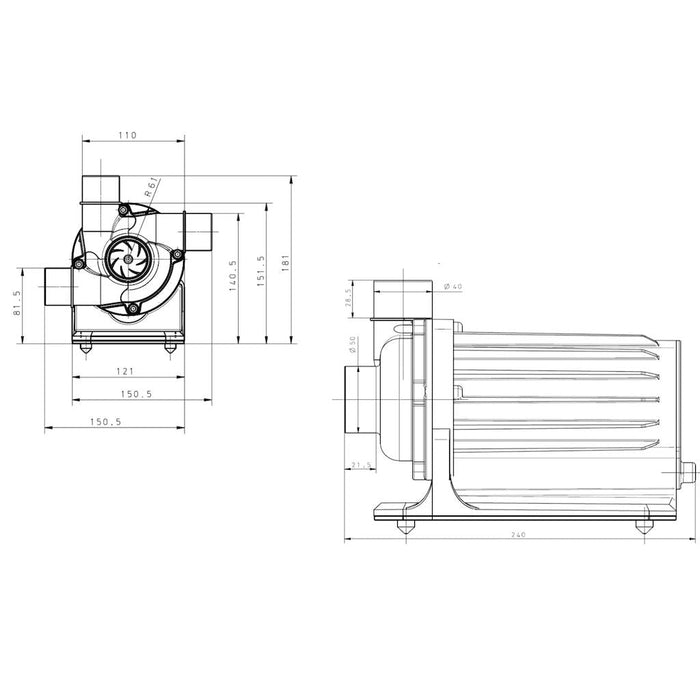

- Inlet/outlet connections (metric): 50/40 mm
- Warranty: 10 years (Must be registered with Abyzz within 4 weeks of purchase). If not registered, the warranty period is 1 year.
Best for:
- Freshwater and seawater aquaristics
- Pond filter systems
- Creeks
- Water features
- Commercial applications
Abyzz A400 IPU FAQ:
Q: What makes the Abyzz A400 IPU different from the standard A400?
A: The A400 IPU features an IP65-rated splash-proof controller designed to withstand moisture-heavy environments around aquariums and ponds, offering enhanced durability and safer installation options.
Q: Is the A400 IPU a self-priming pump?
A: The pump is not self-priming and must be installed below water level. It also requires horizontal mounting to ensure reliable function and cooling.
Q: What type of motor and driver technology does the A400 IPU use?
A: It uses a sine-wave–controlled three-phase motor paired with a programmable driver, providing high efficiency (over 90%), smooth operation, and advanced flow-control features.
Q: How durable is the pump and what materials are used?
A: The A400 IPU is built with a titanium impeller, silicon carbide bearings, a hard-metal shaft, and an integrated bearing-flushing system to reduce calcification. These premium materials deliver long service life with minimal maintenance.
Q: What kind of performance and flow capacity does the A400 IPU provide?
A: The pump delivers up to 6,200 gph (23,500 l/h), a rated flow of 4,900 gph, and a maximum head height of 41 ft, making it ideal for demanding freshwater, saltwater, pond, and commercial applications.
Q: What control, programming, and safety features are included?
A: The pump supports waves, bursts, random patterns, BOOSTMODE, and 0.1% speed adjustment. Safety features include dry-run protection, temperature alerts, overcurrent protection, soft start, and an IP65 motor cable connector.
