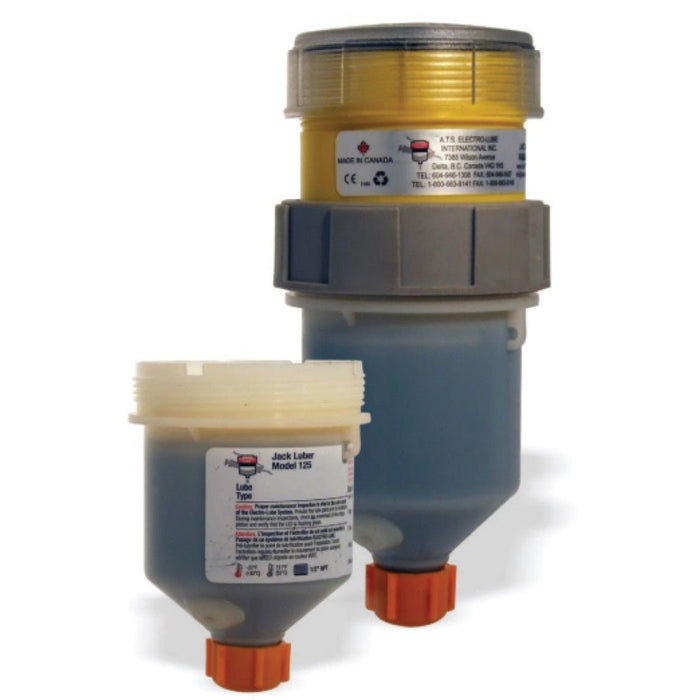

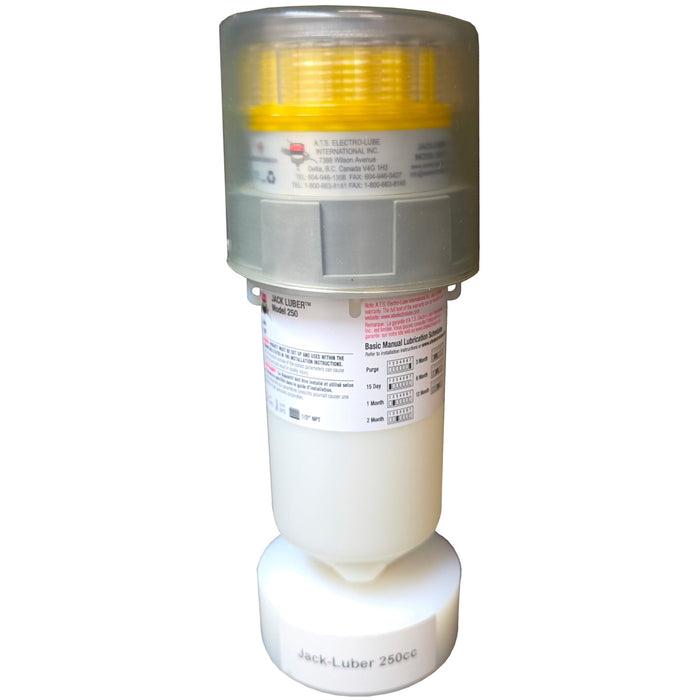

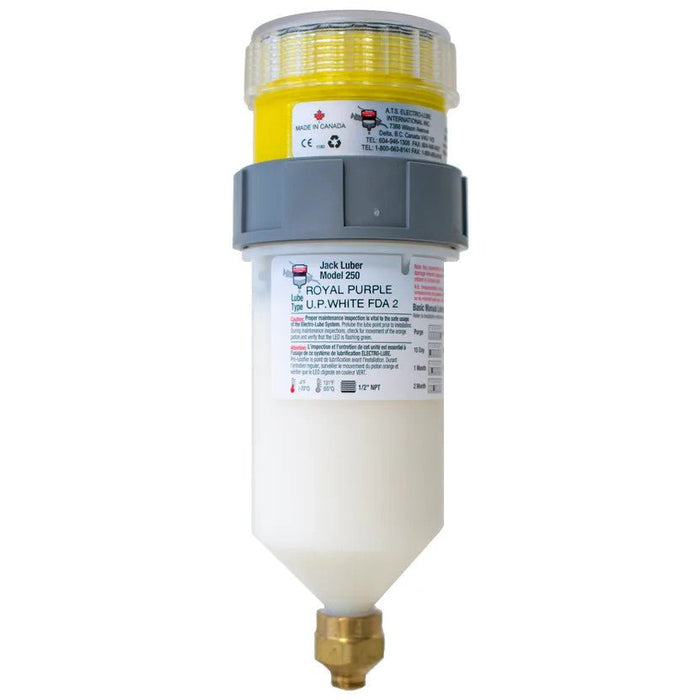

A.T.S. Electro-Lube 250cc Jack Luber Auto Greaser
Features:

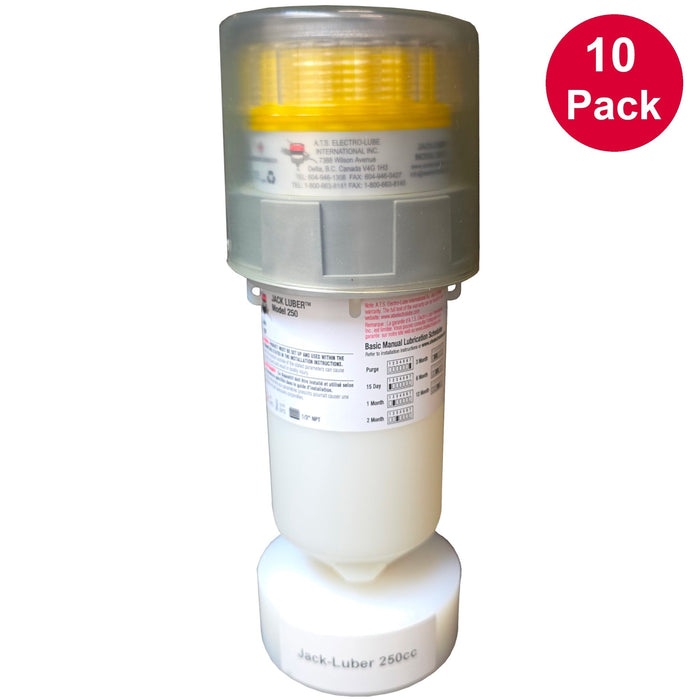

- 10 Pack
- Includes battery packs.
- Helps reduce the risk of bearing failure.
- Self contained, stand-alone lubricator.
- Can be filled with any lubricant.
- Economical: When depleted, only the cartridge & battery needs to be replaced. Not the motor.
- Transparent housing for easy monitoring.
- Can be used in most work environments.
- Electromechanical (motor-Driven) power.
- Produces over 200 psi (13.79 bar)
- Can lubricate a single point up to 20" (6 m) away.

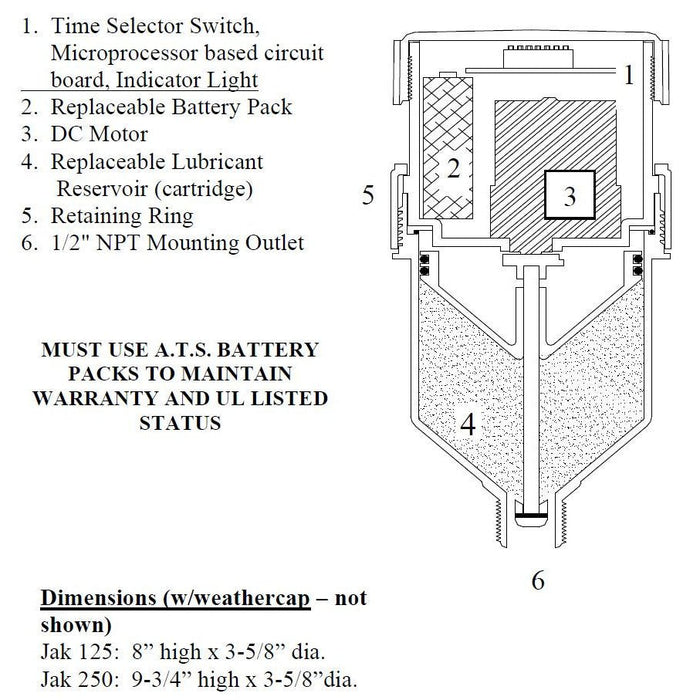

- Uses the Jackscrew mechanism. The motor turns a screw which pushes the plunger down and forces the lubricant out.
- Uses replaceable battery packs
- Optional external power sources available (AC and DC)
- Dispensing Period:
- Between 15 days - 2 years.
- Select dispensing period with a DIP switch.
- Can be changed or turned off at any time.
- Tri-color LED's indicate normal operation, low battery, and low temperature.
- Can lubricate a single point.
-
Easy installation without tools.
-
Major Benefits:
- Extends equipment life.
- Reduces man hours and workplace accidents by working in dangerous or hard to reach areas.
- Prevents lubricant contamination
- Reduces maintenance costs
- Eliminates downtime for costly repairs
- Optional Extras:
- External Power: AC power pack. DC power pack.
- Remote control: can turn the unit on or off at specified times. Can connect to customer machinery or control equipment (e.g. PLC, Contactors, Relays).
- Vibration control: detects when the machine is on, and dispenses lubricant at the pre-selected interval.
- Motion Control: a magnet & sensor will detect when their is motion on a specific machine component and dispense lubricant.
- Pulse Control: a magnet & sensor will detect a set amount of movements, rotations, or other "pulses" on a machine component. It will dispense lubricant only after the set amount of pulses is met.
- WARRANTY: The standard lubrication product warrantee is up to one year.
The A.T.S. Electro-Lube 250cc Jack Luber Auto Greaser is a motor-driven, standalone lubrication unit designed for automated, single-point grease dispensing in a wide range of applications. With a larger 250 cc capacity, it features transparent housing for lubricant visibility, battery packs included for power, and a DIP switch to adjust dispensing intervals from 15 days up to 2 years. This 10 pack offers tool-free installation and supports straightforward monitoring and maintenance, as only the cartridge and battery require replacement, not the motor.
The device operates at pressures exceeding 200 psi and can deliver lubricant up to 20 feet away using a 1/4" ID hose, making it great for various automatic grease lubrication jobs. It utilizes a jackscrew mechanism, where a motor rotates a screw to push lubricant through the plunger. The unit accepts any grease type and includes tri-color LED indicators for battery life, temperature status, and operational feedback. As a bearing greaser, it is compatible with optional accessories such as AC/DC power packs, remote activation, and sensors for vibration, motion, or pulse control. These features enable seamless integration with industrial machinery, PLCs, and various control equipment in fields like oil and gas, food processing, manufacturing, and wind energy.
Designed to help extend equipment life and reduce the risk of manual error or exposure to hazardous locations, the A.T.S. Electro-Lube 250cc Jack Luber Auto Greaser supports cost-effective maintenance while minimizing downtime.
Specifications:
- Size: 250 cc (250 ml) (8.45 oz)
- Dimensions: 11-1/2" high X 3-1/8" diameter.
- Part Number: JAK250L
- Pressure: Up to 200 psi (13.79 bar)
- Temperature Range: -4°F to 131°F (-20°C to 55°C)
- Remote mounting distance: 20' (6 m) for single point using a 1/4" ID hose.
- Dispensing Period: 15 days - 2 years.
- Certifications: UL/CUL Class 1, Div 2, Groups A,B,C,D; Class II, Div 2, Groups F & G, Class III or hazardous locations.
Industries using the A.T.S. Electro-Lube 250cc Jack Luber:
- Agriculture
- Automotive
- Buildings
- Food & Beverage
- Forestry
- Manufacturing
- Mining
- Municipal
- Oil and Gas
- Paper & Pulp
- Wind
- More!!
A.T.S. Electro-Lube 250cc Jack Luber FAQ:
Q: What is the main difference between the 250cc and 125cc Jack Luber models?
A: The 250cc model has double the lubricant capacity, allowing for longer lubrication intervals or higher volume applications, while maintaining the same power and functionality.
Q: Can I use any type of grease with this unit?
A: Yes, the 250cc Jack Luber is compatible with any lubricant, providing flexibility for a wide range of industrial uses.
Q: How do I adjust or stop the dispensing schedule?
A: Use the built-in DIP switch to set the dispensing period from 15 days to 2 years. The setting can be changed or turned off at any time.
Q: What industries commonly use this auto greaser?
A: It's used across agriculture, automotive, food and beverage, oil and gas, wind energy, mining, and manufacturing industries, among others.
Q: Is the unit safe for hazardous environments?
A: Yes, it is UL/CUL certified for use in hazardous locations, including Class 1, Div 2 and Class II, Div 2 environments.
Q: How is the lubrication delivered to remote points?
A: Using a jackscrew mechanism, the motor pushes lubricant up to 20 feet away through a 1/4" ID hose with over 200 psi of pressure.
Q: What visual indicators does the unit offer?
A: Tri-color LEDs provide status updates for low battery, low temperature, and normal operation, ensuring optimal performance.
Q: What optional features can enhance this product’s automation?
A: Optional features include AC/DC power packs, remote control, and sensors for vibration, motion, or pulse control, enabling full integration with PLCs and industrial systems.
