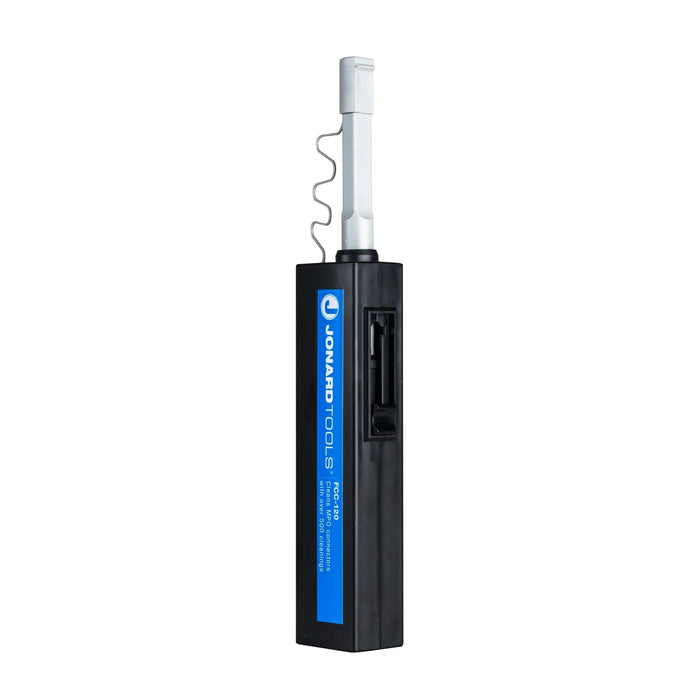

Jonard Tools FCC-120 Fiber Connector Cleaner, MPO
Highlights:
- Removes dust, oil, and debris from MPO connectors and ferrules
- Compatible with MPO 12 and MPO 24 connectors in UPC, APC, and PC polish types
- Works with male pinned and female unpinned connector configurations
- One-push cleaning delivers 500+ cleaning cycles
- Extendable nose reaches recessed adapters and tight spaces in high-density fiber panels
- Meets IEC 61300-3-35, Telcordia GR-2923-CORE, iNEMI, and Cisco EDCS 7027180 cleaning standards
Features:
- Cleans both accessible ports and recessed adapters
- Suitable for routine, high-frequency cleaning in data centers, enterprise IT, and structured cabling networks
- Flip-open tethered adapter cap supports secure switching between plug and port cleaning
- Slide-Guide™ tape system provides smooth tape advancement

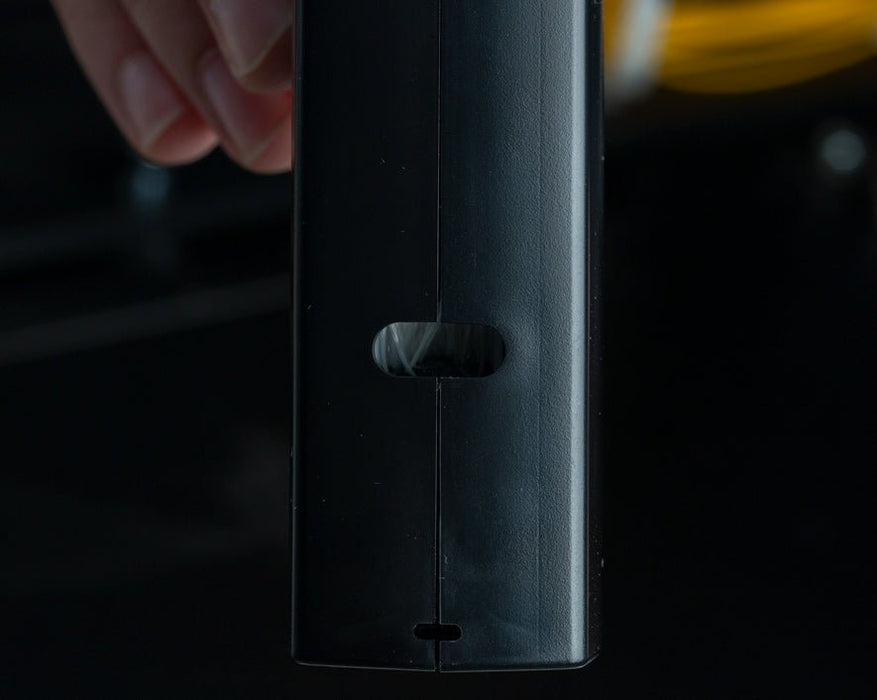

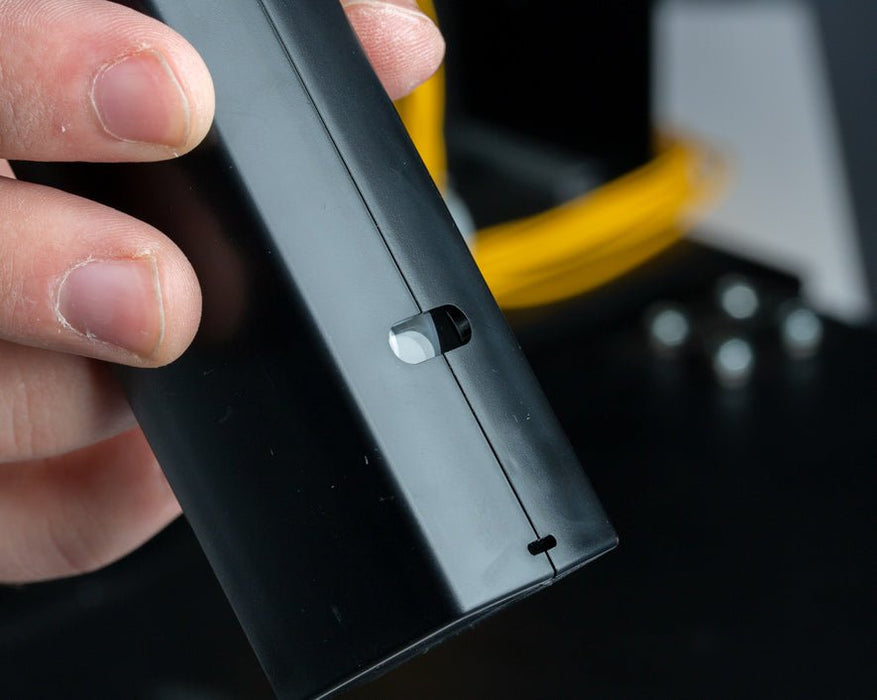

- Viewing window makes remaining cleaning capacity easy to monitor
- Static-free microfiber cleaning fabric supports ESD-safe cleaning
- Rugged housing resists crushing and impact damage
- Backed by a limited warranty
The Jonard Tools FCC-120 Fiber Connector Cleaner, MPO is a multi-fiber connector cleaning tool designed to remove dust, oil, and debris from MPO connectors and ferrules. Compatible with MPO 12 and MPO 24 connectors in UPC, APC, and PC polish types, the device supports male pinned and female unpinned configurations for plug and port cleaning in fiber network environments.

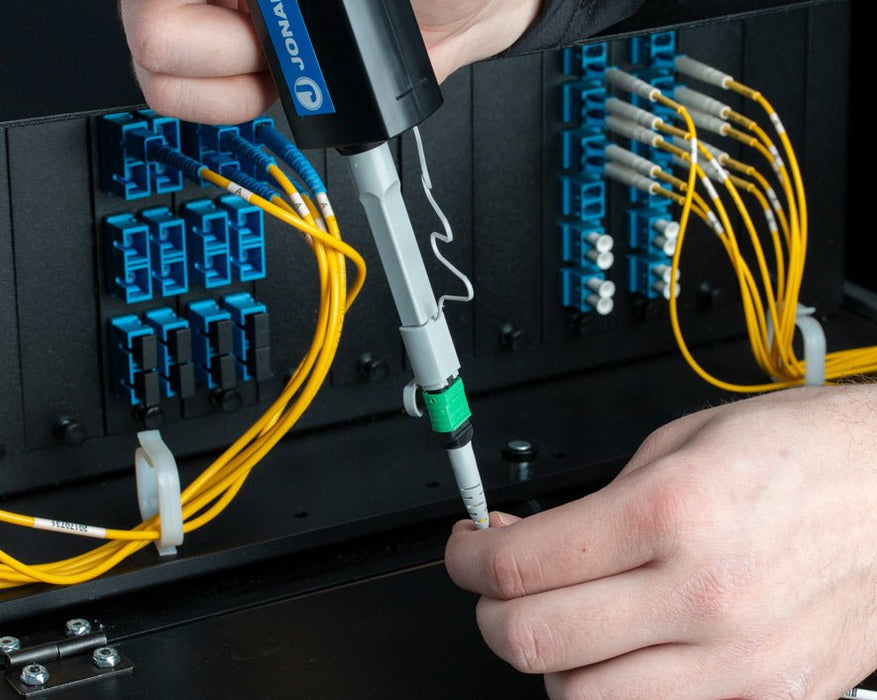

The Fiber Cleaner is suited for routine, high-frequency cleaning in data centers, enterprise IT spaces, and structured cabling networks. Its one-push cleaning motion advances the static-free microfiber fabric through a 180° forward action, providing 500+ cleaning cycles for repeated use. The extendable nose reaches recessed adapters and tight spaces in high-density fiber panels, with a cleaning depth of 2.625 in when retracted and 4 in when extended. A flip-open tethered adapter cap supports controlled switching between plug and port cleaning, while the Slide-Guide™ tape system provides smooth tape advancement. The viewing window makes remaining cleaning capacity easy to monitor during ongoing work.
Built with rugged housing that resists over 250 N of crushing force and 1.5 m drop impact, the device also meets IEC 61300-3-35, Telcordia GR-2923-CORE, iNEMI, and Cisco EDCS 7027180 cleaning standards. For MPO connector maintenance, choose The Jonard Tools FCC-120 Fiber Connector Cleaner, MPO.
Specifications:
- Part Number: FCC-120
- Fiber Type/Application: Multi-fiber, simplex
- Connector Type: MPO: 12, 24 (12x2)
- Polish Type: PC, UPC, APC
- Pin Configuration: Male with pins or female with no pins
- Number of Cleans: 500+
- Cleaning Motion: 180°, push forward
- Guide Type: Extendable
- Cleaning Depth: Retracted: 2.625 in (66.7 mm); extended: 4 in (101.6 mm)
- Cleaning Fabric: Static-free microfiber
- Cleaning Standards: IEC 61300-3-35, Telcordia GR-2923-CORE, iNEMI, Cisco EDCS 7027180
- Crush Resistance: Over 250 N
- Impact Resistance: 1.5 m drop
- Dimensions: 9 in x 1 in x 1 in (22.86 cm x 2.54 cm x 2.54 cm)
- Weight: 0.18 lb (81.65 g)
