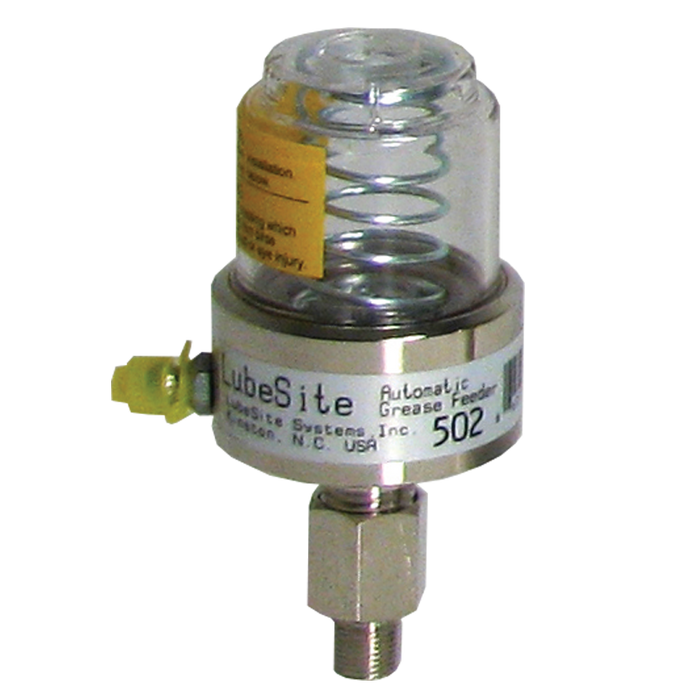

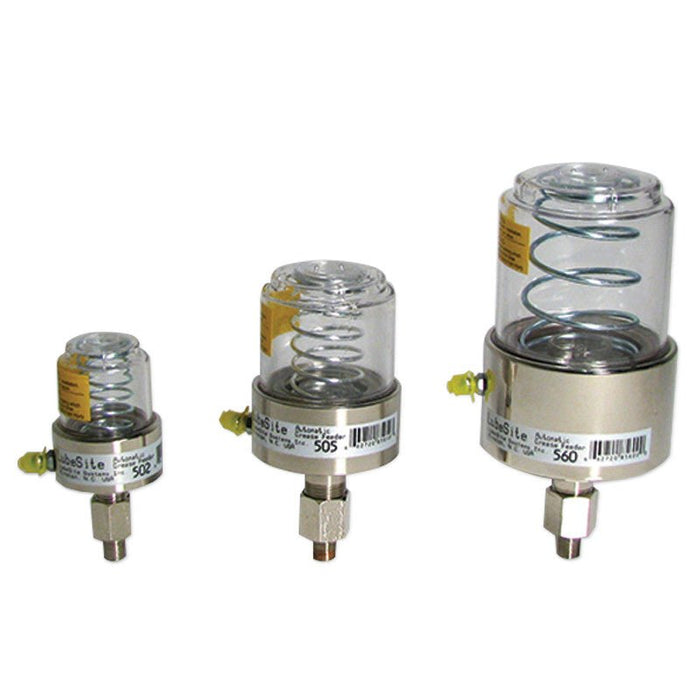

Bijur Delimon LubeSite 502 Auto Greaser (1 oz, Corrosion Resistant)

Features:

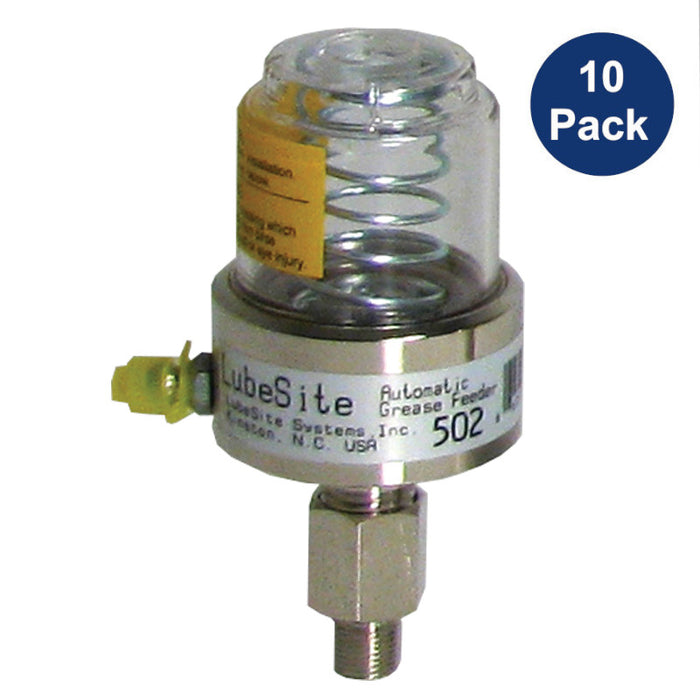

• 10 Pack.

• Reduce the risk of bearing failure by keeping components & machines lubricated.
• Can be filled with any grease from NLGI #0 - 4.
• Refillable & reusable.
• Activation is Instant. Does not require switches or activation accessories.
• For: Lubrication of any equipment that:
  • Is in a corrosive environment. (like chemical or food processing facilities)
  • Is subject to vibration, shock, impact, high torque, or centrifugal forces.
  • Has anti-friction oscillating, ball or roller bearings
  • Has shielded bearings with seals
  • Has bronze, oilite or open bearings
  • Requires bearing flushing action
• Can be mounted in any position & used in any hazardous areas.
• Dispensing Mechanism:
  • Uses a spring, piston with metering rod, and piston seal ring. For the 500 series, the piston seal ring is fabricated from chemical-resistant Viton®.
  • The design offers reliable, controlled lubrication through a simple, foolproof setup and durable, high-strength components.
• How it works:
  • The meter rod’s graduated channels let the bearing draw grease only as needed.
  • Venturi action releases lubricant only when the bearing is in motion.
  • Prevents grease from packing into the bearing.
  • Eliminates over-lubrication during planned machine downtime
  • Operates at a low pressure of 1–5 psi to avoid damaging bearing seals.
  • Grease flow stops automatically when the bearing stops.

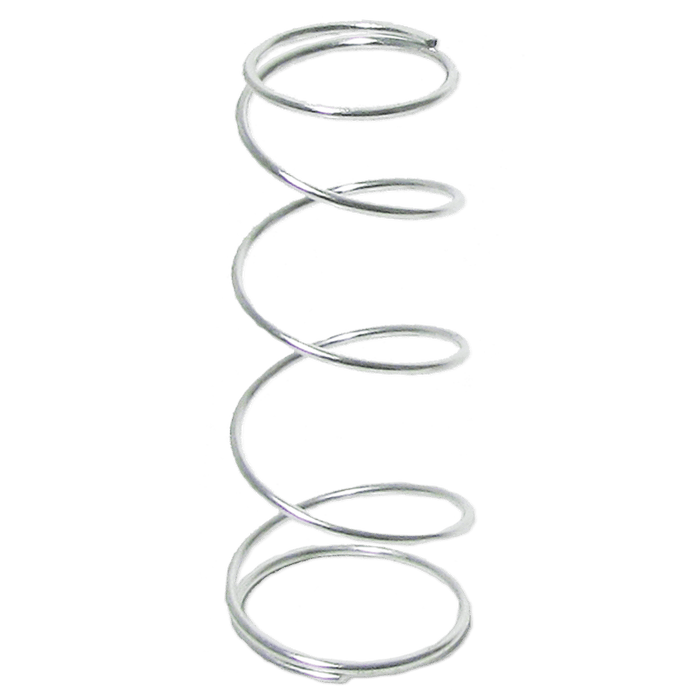

• Springs:
  • Assembled with the Medium (Silver) springs.

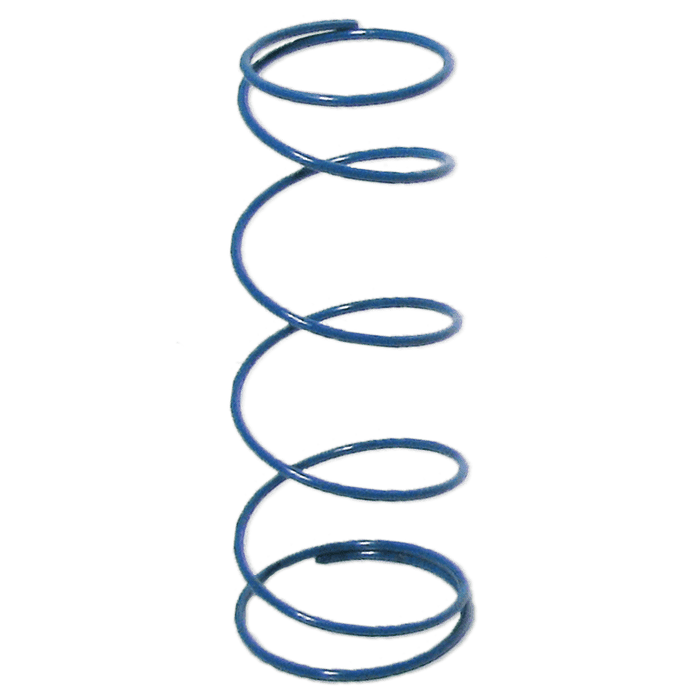

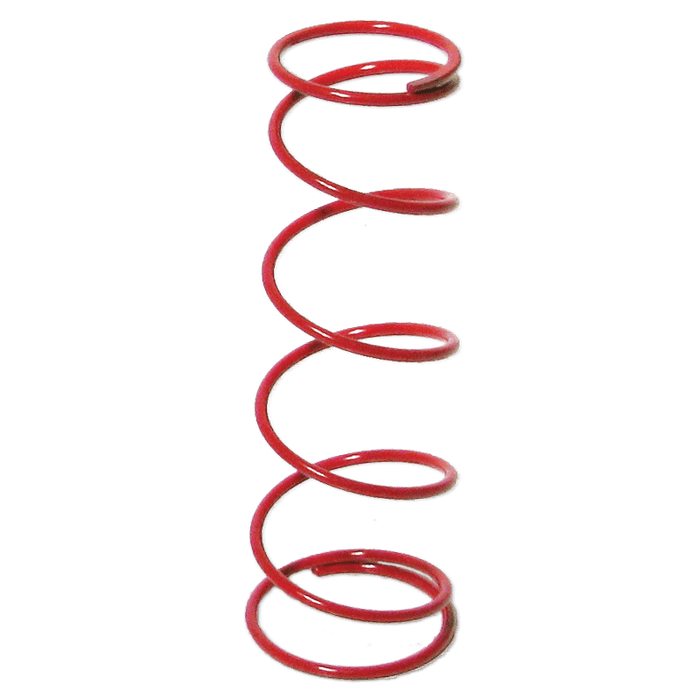

  • Light (Blue), and heavy (Red) springs are included in the box.
  • The extra heavy (Orange) spring is an optional add-on.
• The clear housing allows for easy monitoring of grease levels.
• Easy instillation.
• Saves money: Close to half of all bearing failures are because of improper lubrication. Over and under greasing are big culprits.
• Protect Workers: LubeSite greasers often permit longer periods between greasing. Workers can avoid lubricating equipment while it's in operation & can see lubricant levels from far away.
• NOTICE: Do NOT Overfill! Overfilling can cause over-pressure which can result in the top separating from base. This can cause serious head or eye injury.

The Bijur Delimon LubeSite 502 Auto Greaser is a compact, refillable lubrication unit designed for environments where corrosion and mechanical stress are concerns. Featuring a nickel-chrome plated aluminum base and a chemical-resistant Viton® piston seal ring, it is built to withstand corrosive conditions commonly found in food processing and chemical applications. Offered in a 10 Pack, it provides instant, maintenance-free activation without requiring switches or accessories.

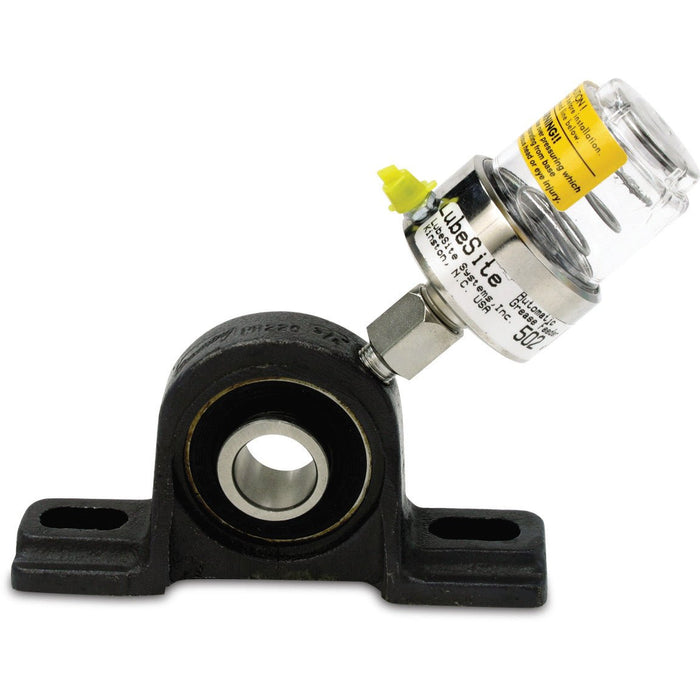

This bearing greaser is compatible with equipment operating under high vibration, torque, shock, or centrifugal force, and supports shielded, open, or sealed bearings including oscillating, ball, roller, oilite, and bronze types. It uses a spring-actuated piston and metering rod to deliver NLGI grade 0 to 4 non-separating grease at a controlled 1–5 psi. The metering rod’s internal channels allow grease to flow only when needed, and the venturi mechanism ensures lubricant is dispensed exclusively during bearing motion. This prevents grease from accumulating during downtime and helps protect seals from pressure damage. The grease feeder comes pre-assembled with a medium (silver) spring and includes light (blue) and heavy (red) springs for adjustable output. Its clear housing offers easy level monitoring, and a standard Zerk fitting simplifies the refill process. Designed for mounting in any orientation, it can be used safely in hazardous areas and across a broad range of industries.

By extending lubrication intervals and reducing manual servicing needs, this unit promotes operational efficiency and worker safety. It supports optimal lubrication in environments where other systems may fail due to chemical exposure or mechanical force. The Bijur Delimon LubeSite 502 Auto Greaser is a durable and effective choice for protecting bearings in corrosive and high-impact settings.

Specifications:

• Size: 1 oz (29.57 ml) (29.57 cc).

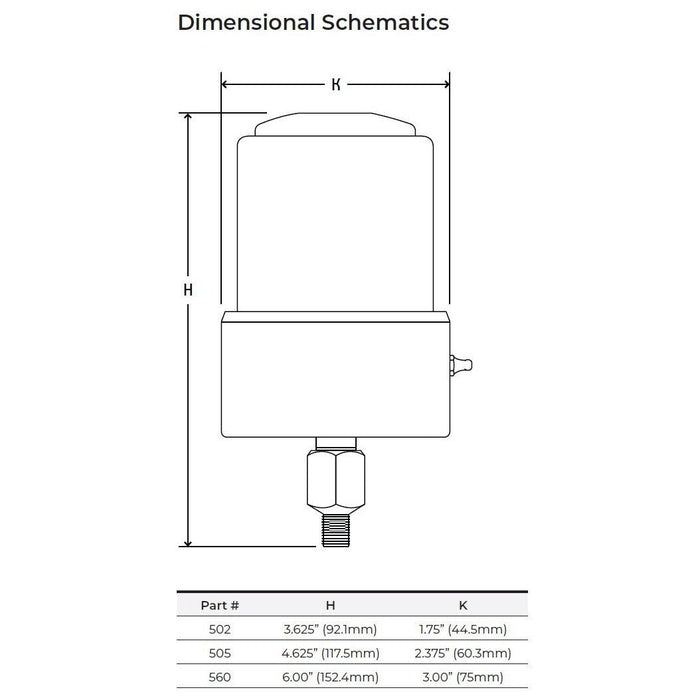

• Dimensions: 3.625” (92.1 mm) high x 1.75” (44.5 mm) wide.
• Part Number: 502
• Series: LubeSite 500
• Pressure: 1 - 5 psi (0.07 - 0.34 bar)
• Temperature Range: -10ºF to 250ºF (-23ºC to 121ºC)
• Material: Polycarbonate dome. Nickel-chrome plated lightweight aluminum base.
• Compatible Grease: NLGI grade 0 to 4 (non-separating).
• Thread Size: 1/8” NPT or 1/8” BSPT.
• Fitting for filling: Zerk.

How To Order:

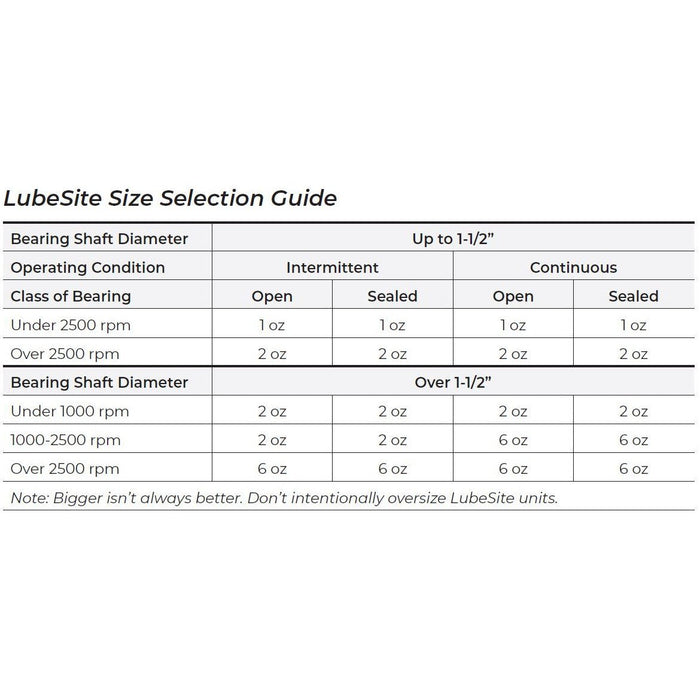

1. Select the proper unit size: To determine the unit size, you need to know the bearing shaft diameter, speed, and the bearing class. If the shaft diameter is 2”, the bearing is sealed and the shaft speed is a continuous 2000 rpm, you will need an extra large unit. See the "LubeSite Size Selection Guide" picture.

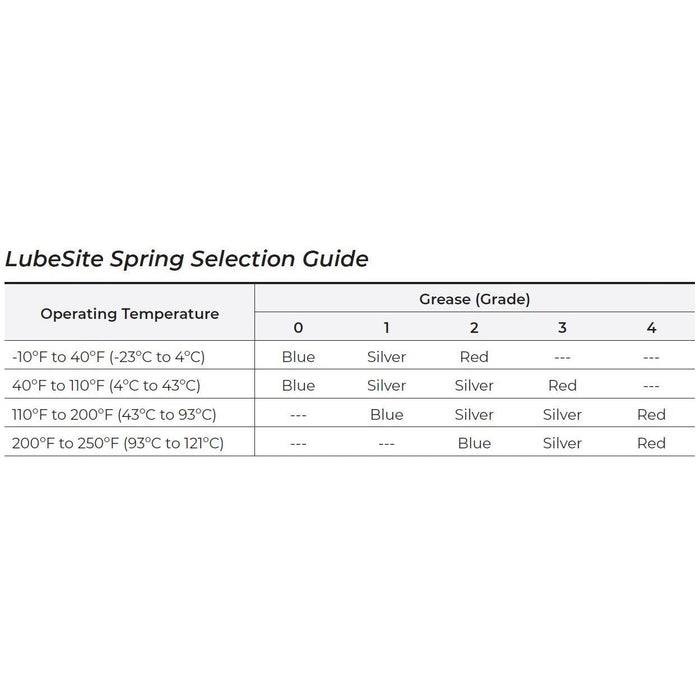

2. Select the proper spring size: First, determine the operating temperature and
   the grease weight. For example, if the operating temperature of the bearing ranges
   from 60ºF to 80ºF, and you’re using grade 2 grease, then you will need a meduim
   (silver) spring. If mounting on an extension, use of an extra heavy (orange) spring may be required (spring effectiveness will vary with application). See the See the spring selection guide picture.

Industries using the LubeSite auto greaser:

• Air Conditioning & Refrigeration
• Amusement Parks
• Automotive
• Aviation & Aerospace
• Baking
• Bottling
• Bowling Lanes Equipment
• Brewing
• Car Wash Equipment
• Chemical Processing
• Compressed Air
• Construction Equipment
• Conveyor Equipment
• Dairy
• Elevators
• Farming
• Fertilizing Plants
• Food Processing
• Grain Processing
• Hospitals
• HVAC
• Lumber
• Machine Tools
• Maintenance & Repair Operations
• Marine
• Mining
• Motors
• Oil (Drilling & Refining)
• Optical Grinding
• Packaging
• Port Facilities
• Printing
• Pulp & Paper
• Pumps
• Public Utilities
• Robots
• Textiles
• Tobacco
• Waste Treatment
