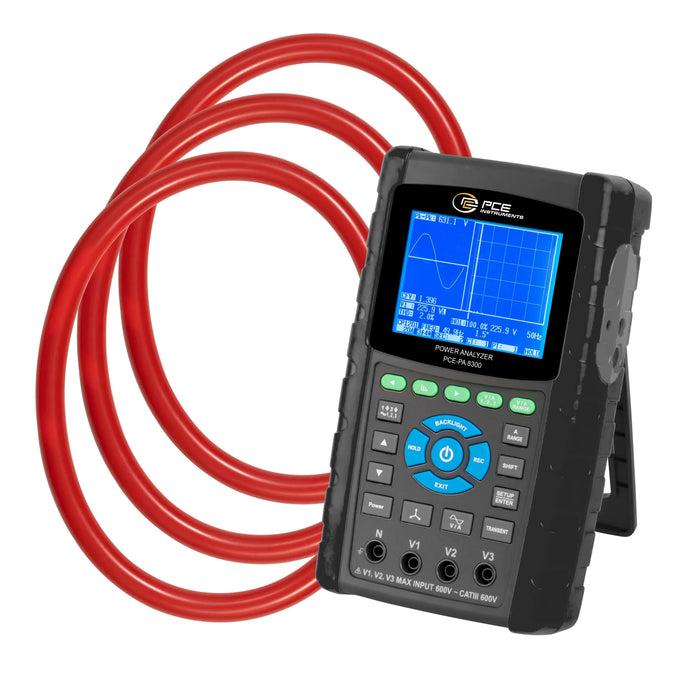

PCE PA 8300 2 Clamp Meter (with Flexible Rogowski Coils)

SKU PCE-PA 8300-2
Save 10% Save 10%
Original price $3,098.00
Original price $3,098.00 - Original price $3,098.00
Original price $3,098.00
Current price $2,788.20
$2,788.20 - $2,788.20
Current price $2,788.20
Request a quote

Highlights:

  • 3-phase
  • 3 Rogowski Coils
  • LCD graphic display
  • SD card memory

The PCE PA 8300 2 Clamp Meter (With Rogowski Coils) features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use Clamp Meter is an ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

Features:

  • Voltage measurement range of 10 V - 600 V AC
  • Current measurement range of 20 A - 1200 A AC
  • Performance measurement range of 0 kW - 9.999 MW (VA/VAR)

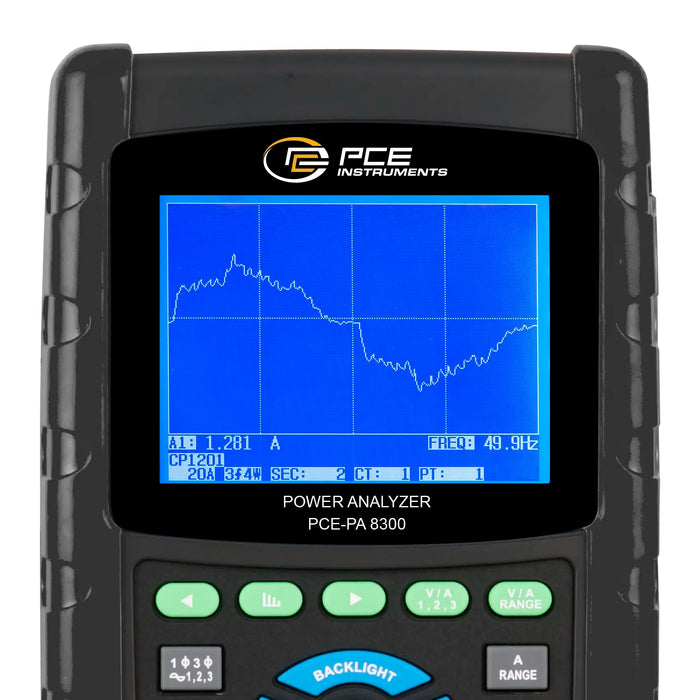

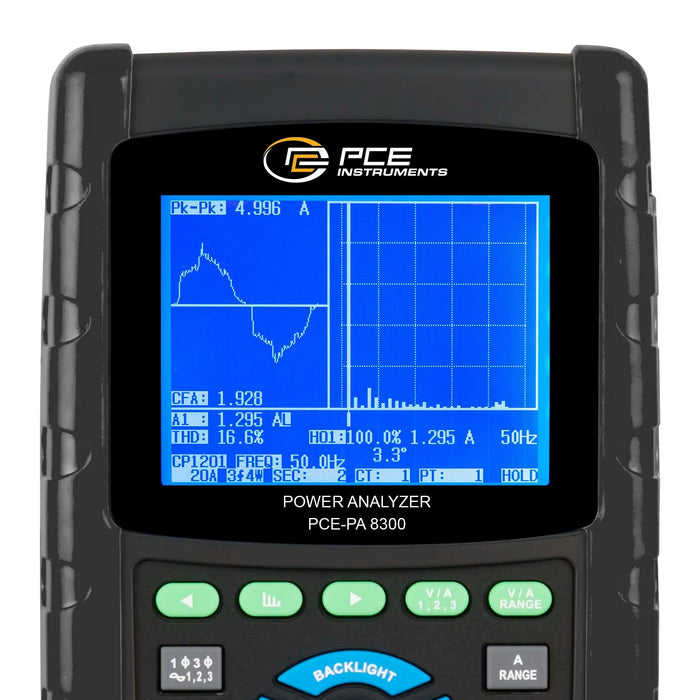

  • Simultaneous display of harmonics and waveform
  • Graphic Phasor diagram
  • Captures transients including dip, swell, and outage
  • SD card memory

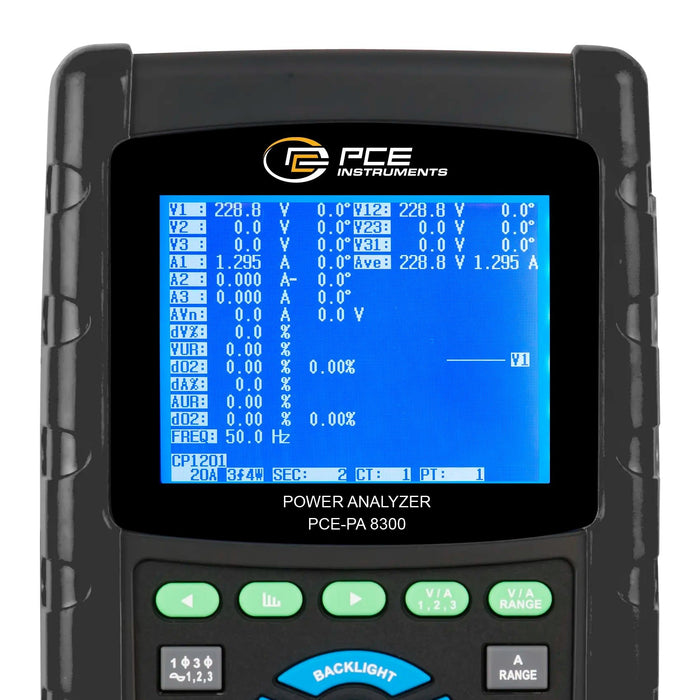

  • LCD graphic display

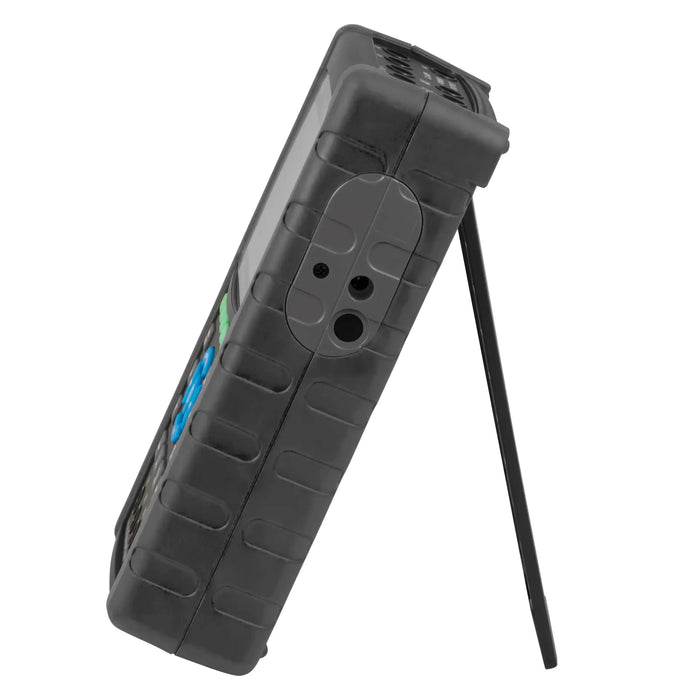

  • Durable enclosure
  • Compatibility with various manufacturers' power clamps
  • Adjustable back-up interval, allowing for long-term data collection
  • Auto-setting of measurement range (AC V)
  • Power efficiency, delay angle, and frequency measurement
  • Apparent, effective, and reactive power measurement
  • Harmonic spectrum measurement up to the 50th order

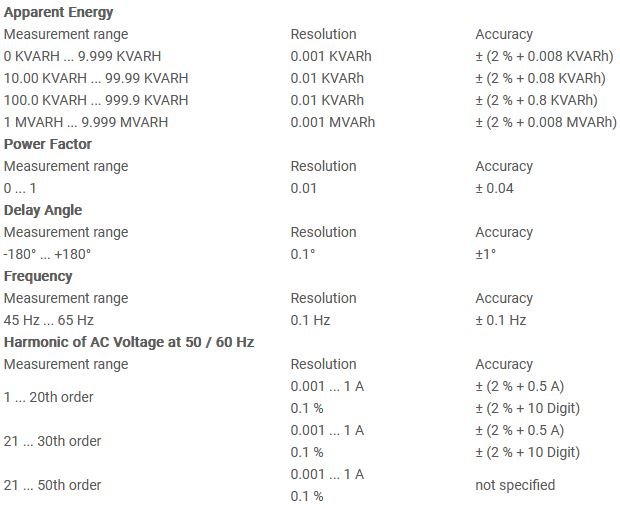

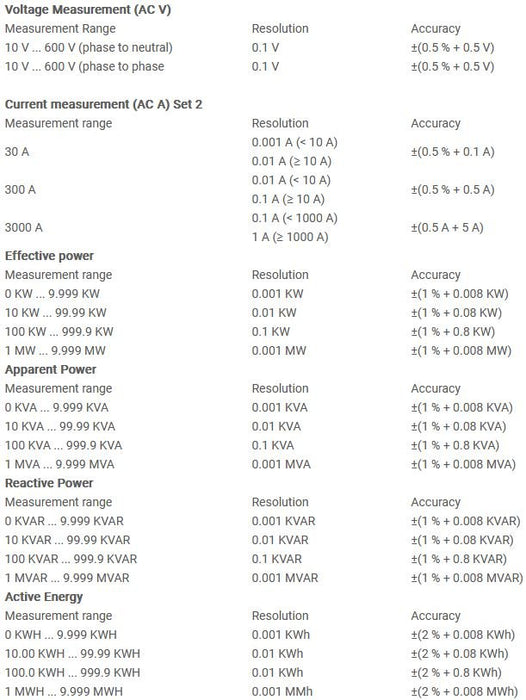

Specifications:


  • Display: 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
  • Safety standards: IEC1010CAT III 600V
  • Input resistance AC V: 10 MOhm
  • Operating frequency of current clamp: 40 Hz ... 1 kHz
  • Tested operating frequency of current clamp: 45 Hz ... 65 Hz
  • Overload protection:
    • AC V
    • AC A
    • 720 V RMS
    • 1300 A with current clamp
  • Data Storage: SD memory card
  • Refresh interval: 1 second
  • Data logging function: logging with real-time speed on SD memory card
  • Record interval: 2 - 7200 seconds
  • Data output (only for live display on computer): per USB or RS232, depending on connection cable.
  • Operating temperature: 0° C ... +50° C / 32° F ... 122° F
  • Surrounding humidity: < 80 % RH
  • Power Supply:
    • 8 x 1.5 V AA batteries
    • Voltage Supply 9 V adapter
  • Current Drain:
    • Measurement Device: 300 mA DC
    • current clamp: 34 mA DC
  • Maximum Wire Diameter: 50 mm / 1.9 in
  • Weight:
    • Measurement Device: 948 g / 33.4 oz (incl. battery)
    • Current clamp: 467 g / 16.4 oz (incl. cable)
  • Dimensions:
    • Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
    • Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
    • Clamp jaw: 86 mm / 3.3 in (exterior)

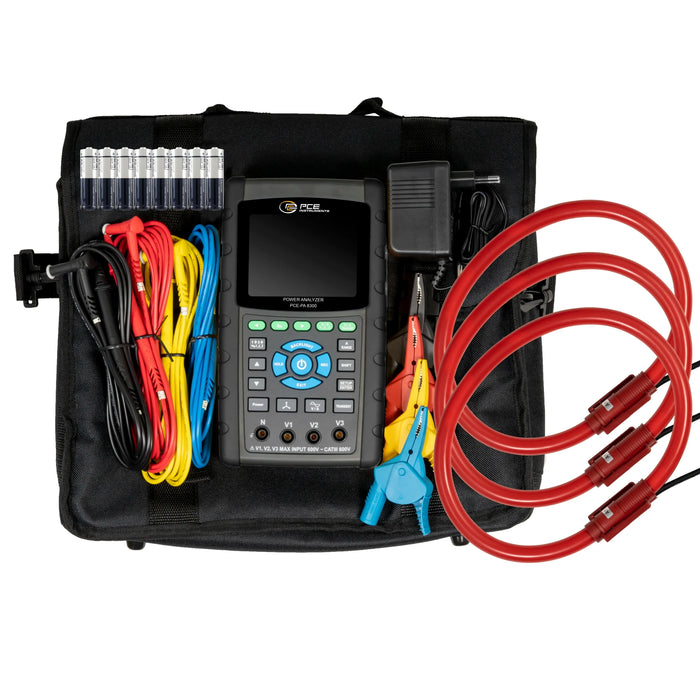

What’s Included:

  • 1 x PCE-PA 8300 Clamp Meter
  • 3 x Flexible Rogowski coils (Set 2)
  • 4 x Insulated alligator clips

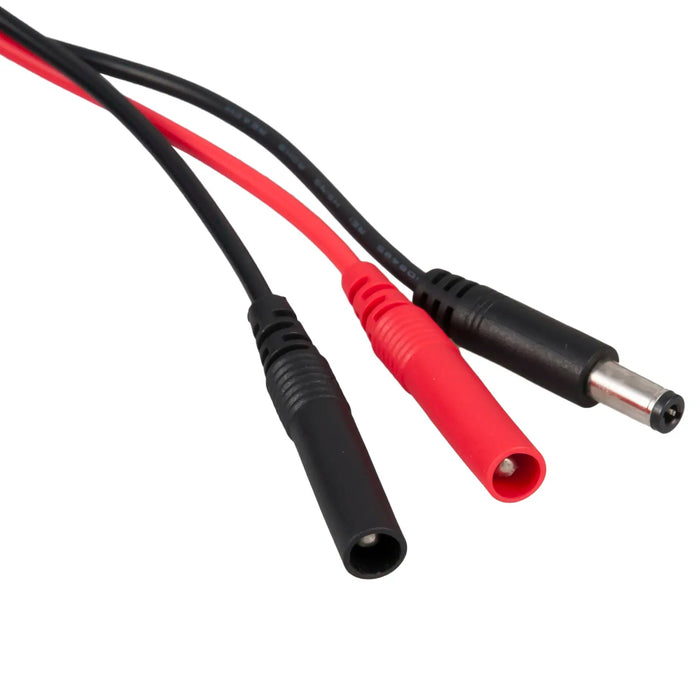

  • 4 x Safety test lines
  • 6 x 1.5 V AA batteries
  • 1 x 9 V mains adapter
  • 1 x SD memory card
  • 1 x Carrying case
  • 1 x User manual

 PCE-PA 8300-2 User Manual

PCE-PA 8300-2 Data Sheet
