Jameson 13-716-600M Duct Hunter Rodder (7/16" x 600', Traceable. 5' Marks)

Highlights:

• 600 ft. of 7/16 in. Traceable fiberglass rod
• With copper trace wire
• Rod marked every 5 ft. with metric markings every 1 m
• Used For:
  • Non-invasive locating and mapping of underground ducts and pipes
  • Locating sewer laterals and confirm no cross bore has occurred
  • Locating ductile iron, plastic, tile, and concrete pipe
  • Use in conduit with a 4 in. or larger diameter
• Detectable at depths up to 10 ft. when energized with a signal transmitter and traced with a hand-held receiver


Features:

• 9 in. bend radius

• Supports full-line tracing using an electromagnetic signal
• Reduces time by helping eliminate digging and trenching
• Includes male end ferrule, pulling eye, and accessory kit attached to the frame

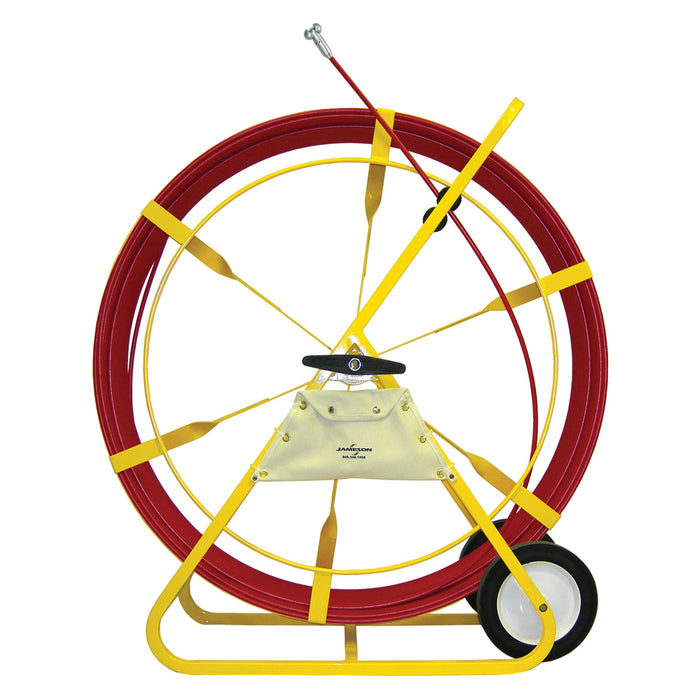

The Jameson 13-716-600M Duct Hunter Rodder is a traceable fiberglass duct rod designed for non-invasive locating and mapping of underground ducts and pipes in larger conduit systems. It features 600 feet of 7/16-inch fiberglass rod with an integrated copper trace wire, allowing crews to locate sewer laterals, confirm no cross bore has occurred, and trace ductile iron, plastic, tile, and concrete pipe. Markings every 5 feet, along with metric markings every 1 meter, support consistent measurement and tracking.

The rodder is built for conduit with a 4-inch or larger inside diameter and can be detected at depths up to 10 feet when used with a signal transmitter and hand-held receiver. A 9-inch bend radius helps guide the line through turns while maintaining control. The rodding reel supports full-line tracing using an electromagnetic signal, helping reduce time spent on digging and trenching. Included components such as the male end ferrule, pulling eye, and accessory kit attached to the frame provide added convenience during setup and operation.

With overall dimensions of 47.5 by 44 by 20 inches, this unit delivers a balanced combination of reach, traceability, and field-ready functionality. Its 600-foot length and 7/16-inch diameter make it suitable for crews handling underground utility locating and conduit verification in larger pathways. For professionals seeking efficient tracing and organized deployment, the Jameson 13-716-600M Duct Hunter Rodder offers a reliable solution.

Specifications:

• Part Number: 13-716-600M
• Rod Length: 600 ft (182.88 m)
• Rod Diameter: 7/16-inch (11.11 mm)
• Rod Material: Fiberglass with copper trace wire
• Detection Distance: 10 ft (3.04 m)
• Bend Radius: 9" (228.6 mm)
• Ideal for Conduit: With inside diameter 4 inch or larger (101.6 mm or larger)
• Included: Accessory Kit
• Dimensions: 47.5″ x 44″ x 20″ (1207 x 1118 x 508 mm)
