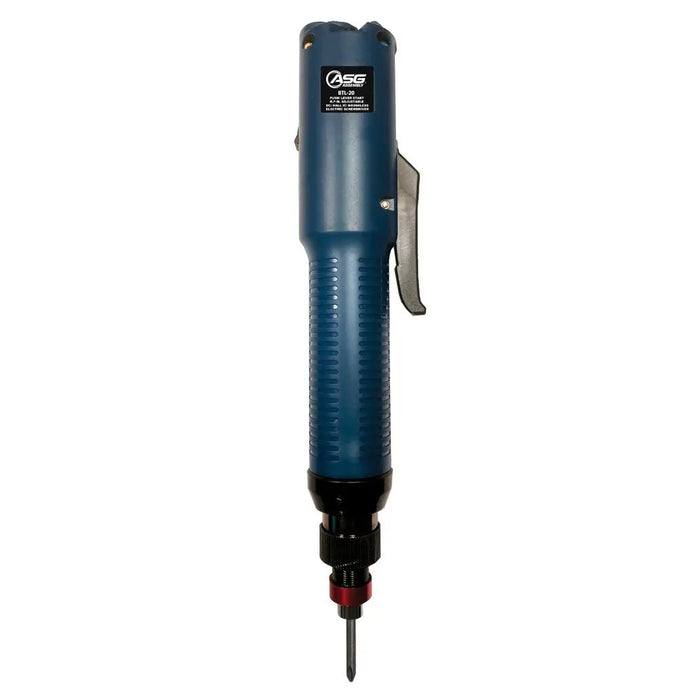

ASG BTL-20 Electric Torque Screwdriver (1/4". 2.7-17.7 lbf.in)

Highlights:

• FREE power supply included.
• Add on services: Click and add the service to your cart.

  • Preset Torque
  • Driver Calibration (with certificate)

• Brushless motor:
  • High performance and low maintenance
  • Eliminates carbon dust for cleaner operation
• Easily switch between lever and push-to-start
• Internal speed adjustable from 100 to 950 RPM
• Compatible with the ASG STC-02 screw counter
• Ergonomic design, small and light weight
• Stable & precise torque output allows for high repeatability
• Low noise

The ASG BTL-20 electric torque screwdriver combines control, flexibility, and a compact form for fast-paced assembly environments. Designed with a brushless motor, it supports clean, efficient performance while minimizing wear. A dual-mode trigger system allows operators to choose between lever and push-to-start operation depending on workflow. With internal speed settings adjustable from 100 to 950 RPM, it’s adaptable to different fastener and material types.

This electric torque driver delivers consistent fastening within a torque range of 2.7 to 17.7 lbf.in, making it suitable for light to moderate torque applications. Its 1/4" hex drive interface ensures compatibility with standard production bits, while the auto shut-off clutch prevents overdriving by disengaging once the target value is reached. This torque screwdriver also features reduced noise and vibration, along with reliable repeatability which is critical in high-cycle production. The brushless configuration eliminates carbon dust, enhancing performance in sensitive assembly spaces.

Compact at 11.4 inches and weighing 1.6 pounds, the ASG BTL-20 electric torque screwdriver provides low-maintenance operation and long-term usability.

Specifications:

• Motor type: brushless
• Operation: lever and push-to-start
• Body style: inline
• Series: BTL
• Clutch type: auto shut off
• Torque range - imperial: 2.7 - 17.7 lbf.in
• Torque range - metric: 0.3 - 2.0 N.m
• Drive type: 1/4" hex
• Speed: 950 (hi) - 100 (low) RPM
• Length - imperial: 11.4 in
• Length - metric: 290 mm
• Weight - imperial: 1.6 lb
• Weight - metric: 0.72 kg
• ESD safe: no
• Warranty: 1 year
