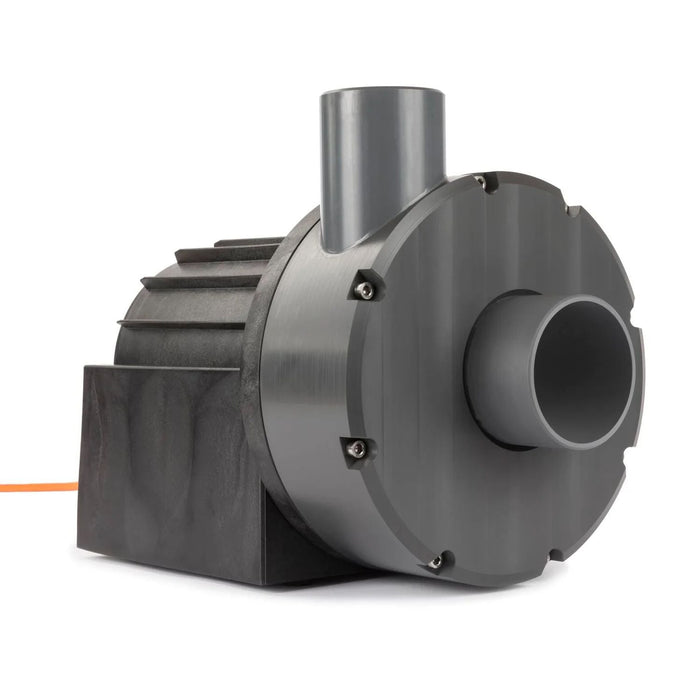

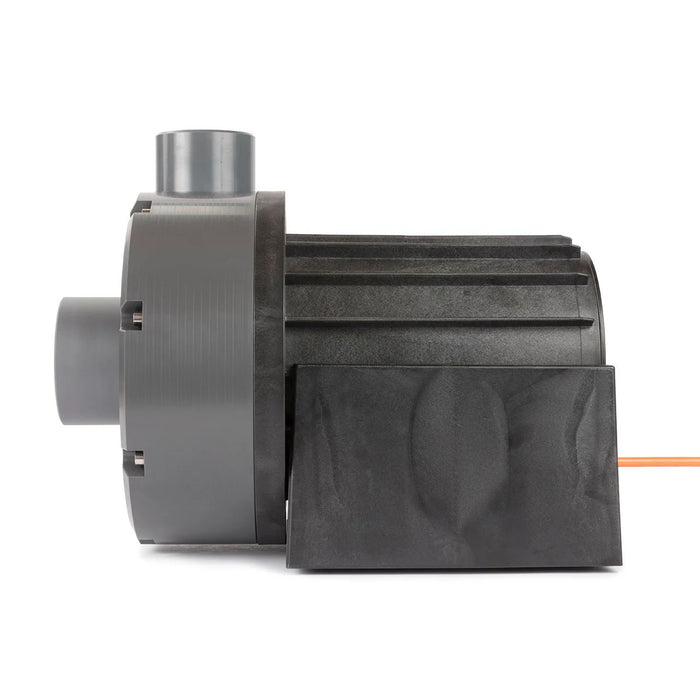

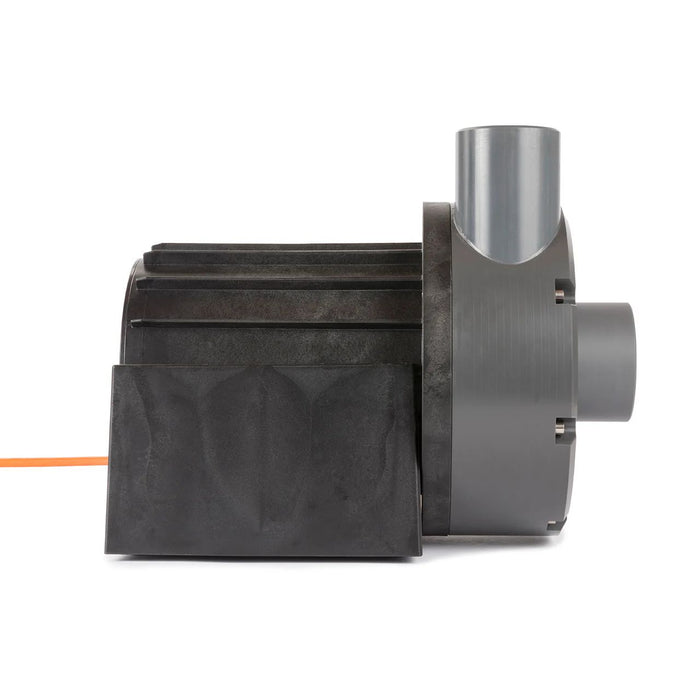

Abyzz A1200 IPU DC Water Pump (12,700 gph, 3m or 10M cable)
Highlights:
- Made In Germany.

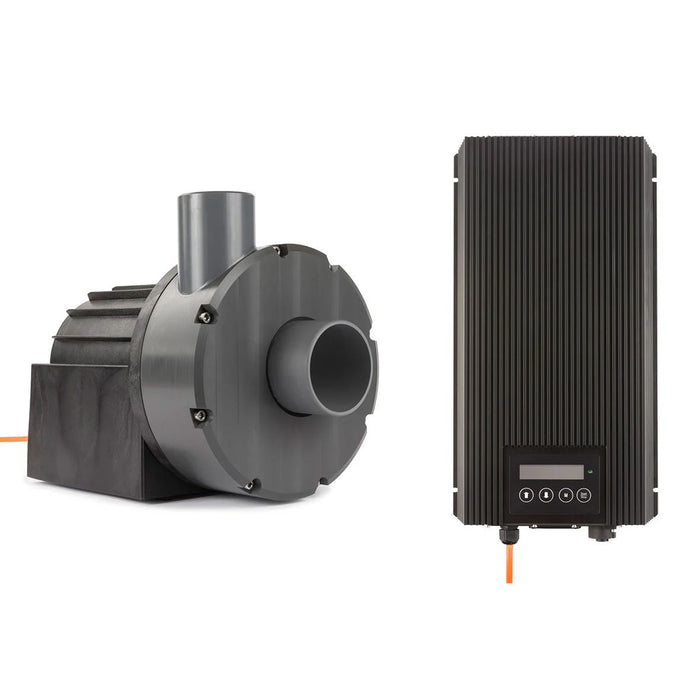

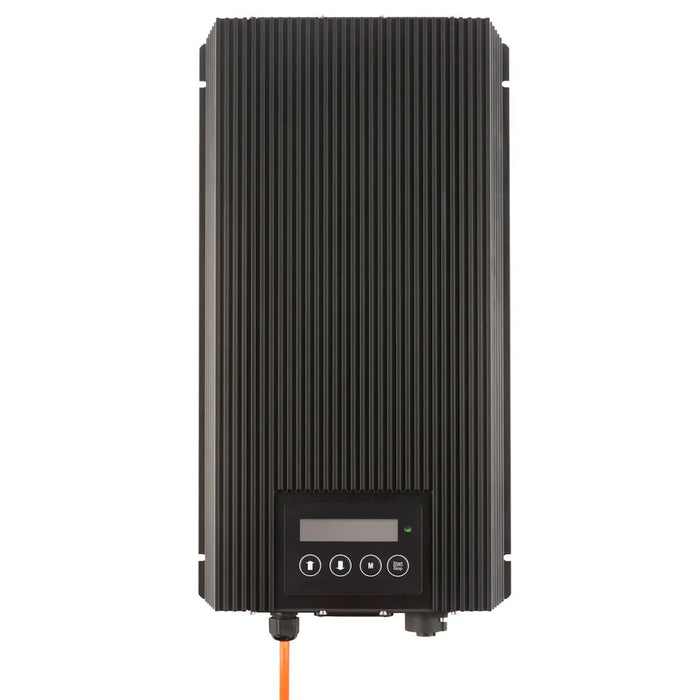

- Includes an IP65-rated splash-proof controller built to withstand the harsh aquatic environments like those around aquariums and ponds.
- Titanium impeller for maximum durability
- Programmable driver with sine-wave–controlled three-phase motor
- High motor efficiency of over 90%
- Adjustable pump speed for optimized performance and energy savings
- Integrated bearing-flushing system to prevent calcification

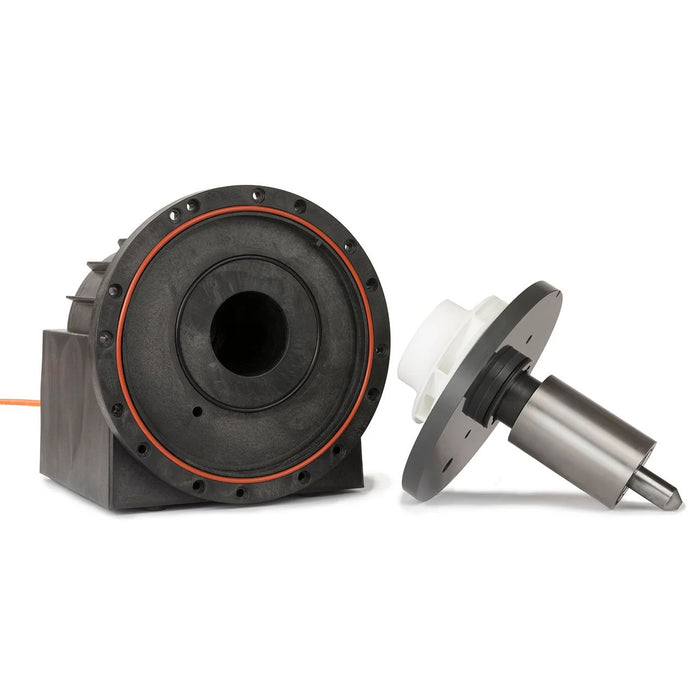

- Silicon carbide bearings and hard-metal shaft for long service life and low maintenance
- Constructed from high-grade, long-lasting materials
- Engineered and manufactured in Germany by venotec
- NOTE: this pump is not self-priming and has to be mounted under water level. Mounting orientation must be horizontal.
Features:
- Variable speed range (0–100%)
- Precise speed adjustment in steps of 0.1%.
- Integrated programming to generate waves, bursts, and random flow patterns with additional BOOSTMODE to override actual programming (MCFS – Menu Controlled Flow Sequencer)
- Comprehensive safety functions such as dry-run warning, temperature alert, overcurrent protection, and zero speed alert.
- Soft startup
- Auxiliary connector for peripheral devices (e.g., interfacing to external controllers)
- High-quality IP65 motor cable connector
- Low-noise operation
- Choice of 3 m or 10 m cable length

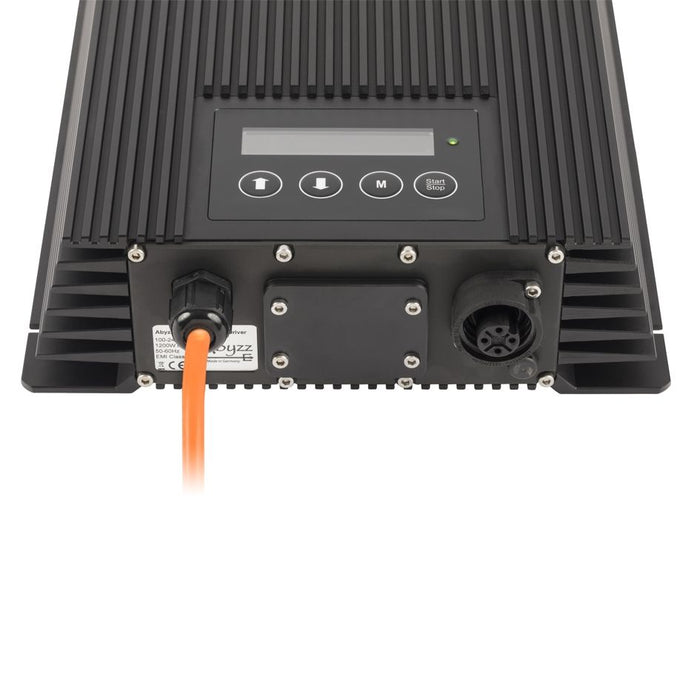

- Multicolor background LC display

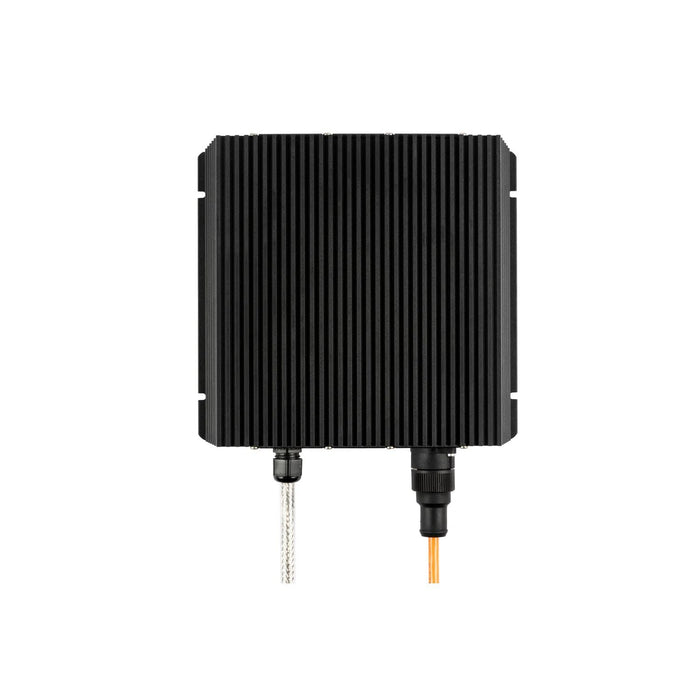

- Splash & waterproof driver (IP65)
- Wide range input with active power factor correction
- Optimized heat sink design
The Abyzz A1200 IPU DC Water Pump introduces a powerful solution built for large aquatic systems that require high flow capacity, precise control, and durable operation. Featuring a titanium impeller paired with a sine wave controlled three phase motor, the device delivers smooth performance and strong efficiency across a wide range of conditions. Its IP65 rated splash proof controller is designed for moisture heavy environments, while adjustable speed settings and an integrated bearing flushing system help maintain consistent operation and reduce calcification. Horizontal mounting below the waterline ensures proper function in both professional and hobbyist installations.
This aquarium water pump incorporates silicon carbide bearings and a hard metal shaft that support a long service life. Users can refine water movement through programming options that generate waves, bursts, random patterns, and a BOOSTMODE function for temporary output increases. Quiet operation, 0.1 percent speed adjustment, and an auxiliary connector allow seamless integration with systems built around this electric water pump. A multicolor LC display, IP65 rated motor cable connector, and optional cable lengths strengthen usability, while active power factor correction and an optimized heat sink design contribute to stable performance across varied environments.
With safety features that include dry run alerts, temperature warnings, overcurrent protection, and zero speed monitoring, the device supports reliable use in freshwater tanks, marine setups, ponds, creeks, and commercial features. Its strong output capability, flexible control options, and durable construction make it suitable for a wide range of aquatic applications requiring consistent water movement. The Abyzz A1200 IPU DC Water Pump
Specifications:
- Model: A1200 IPU
- Alternate Part Number: 90000950

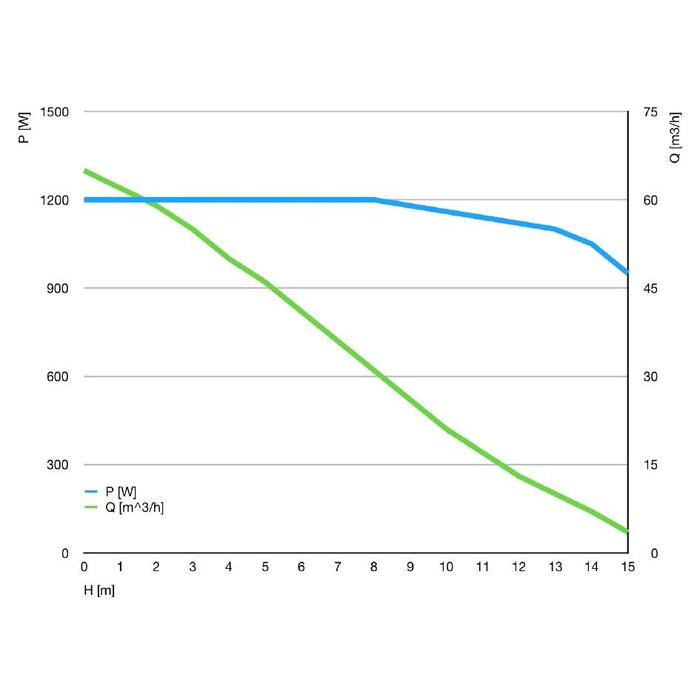

- Maximum flow rate: 18,000 gph (68,000 l/h)
- Rated flow rate (@4 m): 12,700 gph (48,000 l/h)
- Delivery height: 49 ft (15 m)
- Max. discharge speed: 19.7 ft/s (6.5 m/s)
- Power consumption: 4–1200 W
- Operating voltage: 100–240V~
- Operating frequency: 50–60 Hz
- Maximum operating pressure: 17.4 psi (1.2 bar)
- Maximum immersion depth: 6.5 ft (2 m)
- Pump ambient temp.: 34–122°F (1–50°C)
- Driver ambient temp.: 32–86°F (0–30°C) (without additional cooling)
- Pump cable length (optional): 10/30 ft (3/10 m)

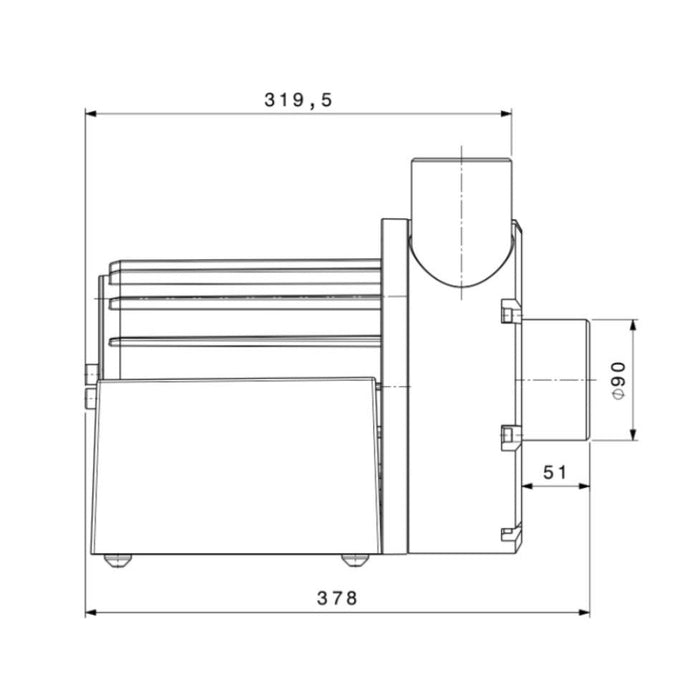

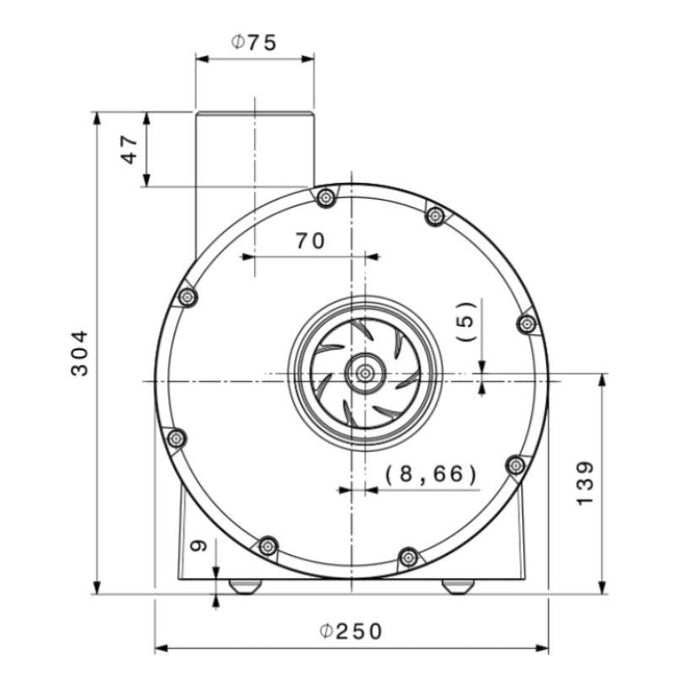

- Inlet/outlet connections (metric): 90 mm / 75 mm
- Warranty: 10 years (Must be registered with Abyzz within 4 weeks of purchase). If not registered, the warranty period is 1 year.
Best for:
- Freshwater and seawater aquaristics
- Pond filter systems
- Creeks
- Water features
- Commercial applications
Abyzz A1200 IPU FAQ:
Q: What types of aquatic systems is the Abyzz A1200 IPU suitable for?
A: The pump is designed for large freshwater or saltwater aquariums, ponds, creeks, water features, and commercial aquatic installations requiring high flow, reliability, and precision control.
Q: Does the Abyzz A1200 IPU need to be installed below the water level?
A: Yes. The pump is not self-priming and must be mounted below the waterline in a horizontal orientation to ensure proper operation.
Q: What makes the pump durable for long-term use?
A: It features a titanium impeller, silicon carbide bearings, a hard-metal shaft, and high-grade materials. The integrated bearing-flushing system also helps prevent calcification for long service life.
Q: How adjustable is the pump’s performance?
A: The pump supports 0–100% variable speed with fine 0.1% adjustment steps. It includes programmable wave, burst, and random flow patterns, along with a BOOSTMODE for temporary flow increases.
Q: What safety features are integrated into the controller?
A: Safety functions include dry-run warning, temperature alerts, overcurrent protection, zero-speed alerts, and soft startup to protect both the pump and the system.
Q: What warranty is offered with the Abyzz A1200 IPU?
A: The pump includes a 10-year warranty when registered with Abyzz within 4 weeks of purchase. Without registration, the warranty period is 1 year.
