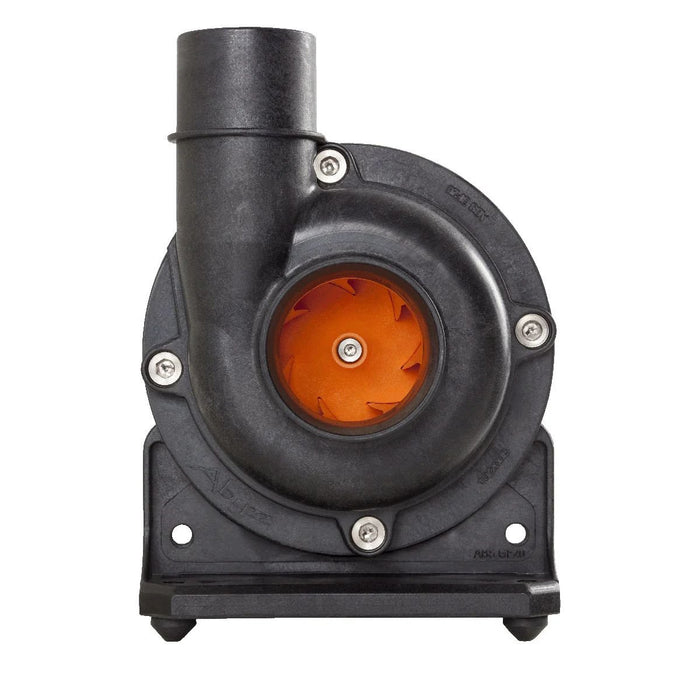

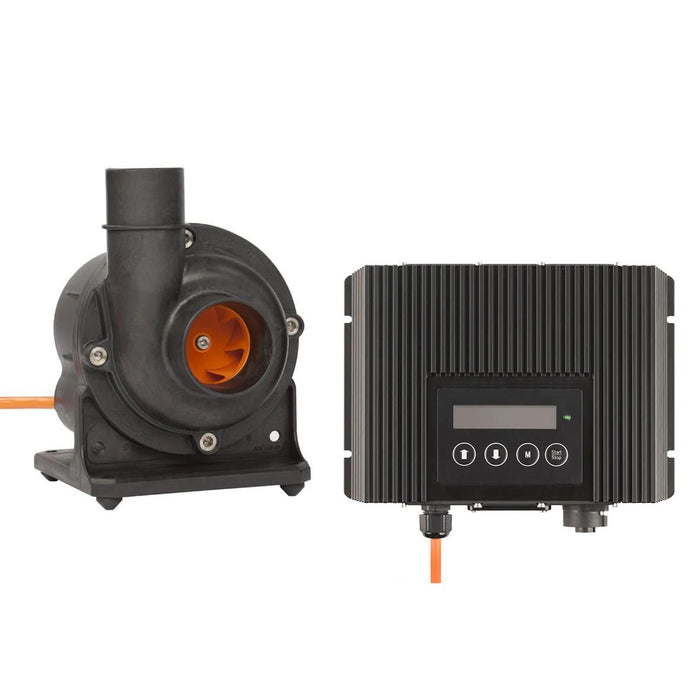

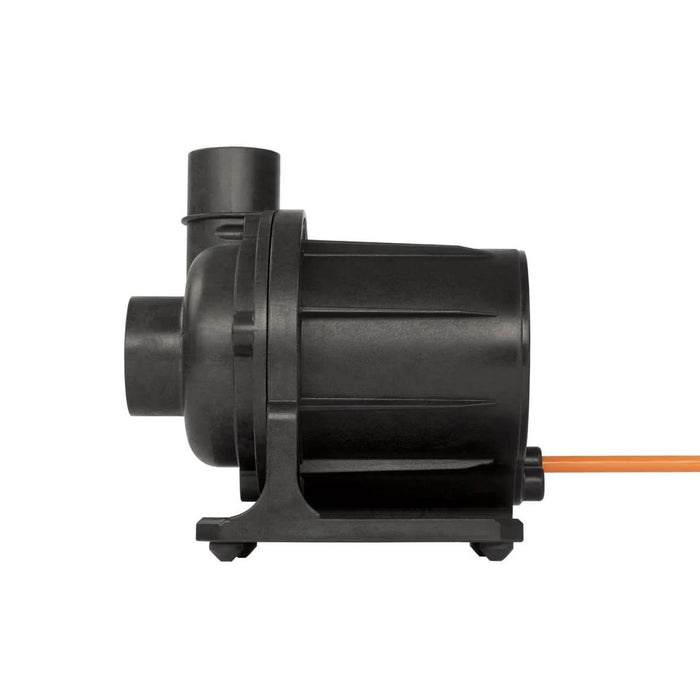

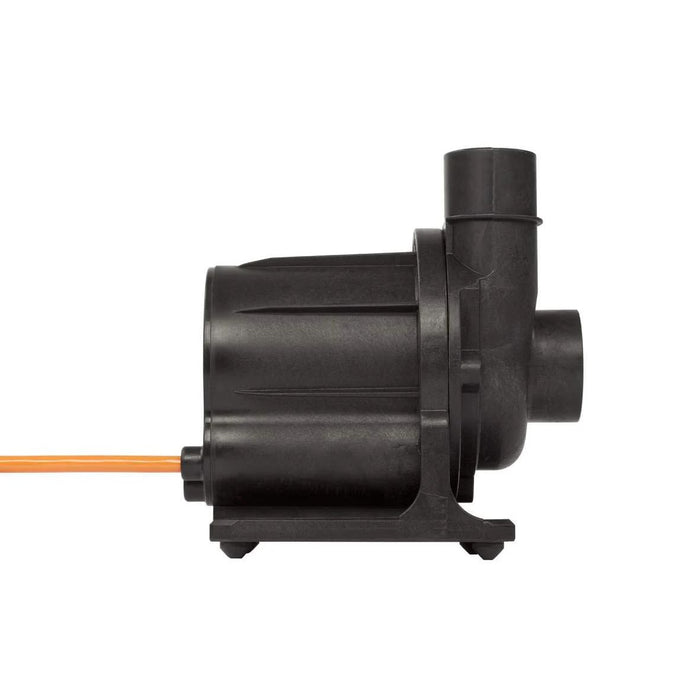

Abyzz A200 IPU DC Water Pump (3800 gph, 3m or 10M cable)

Highlights:

• Made In Germany.

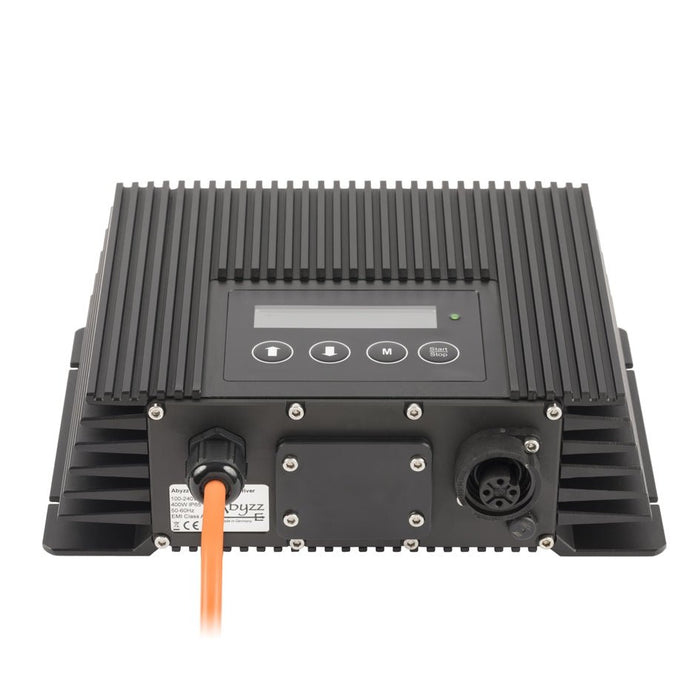

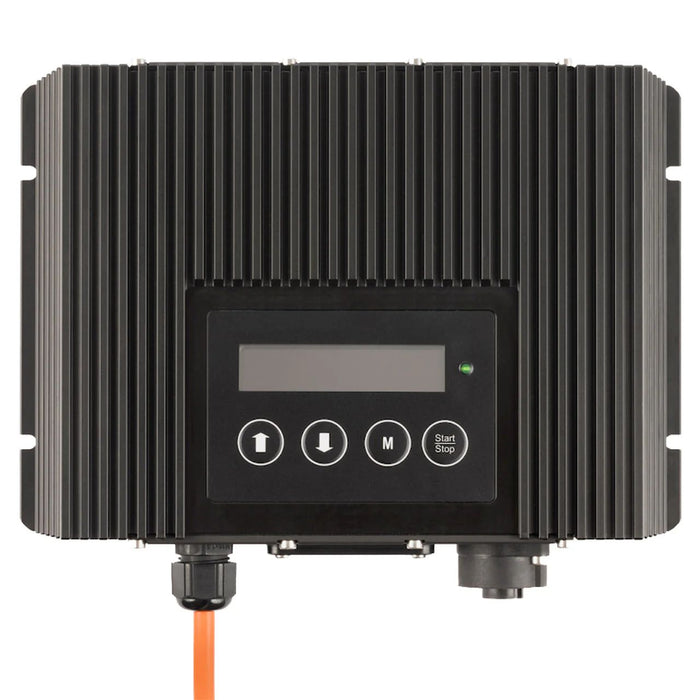

• Unlike the standard A200, the A200 IPU includes an IP65-rated splash-proof controller built to withstand the harsh aquatic environments like those around aquariums and ponds.
• Titanium impeller for maximum durability
• Programmable driver with sine-wave–controlled three-phase motor
• High motor efficiency of over 90%
• Adjustable pump speed for optimized performance and energy savings
• Integrated bearing-flushing system to prevent calcification
• Silicon carbide bearings and hard-metal shaft for long service life and low maintenance
• Constructed from high-grade, long-lasting materials
• Engineered and manufactured in Germany by venotec
• NOTE: this pump is not self-priming and has to be mounted under water level. Mounting orientation must be horizontal.

Features:

• Variable speed range (0–100%)
• Integrated programming for waves, bursts, random flow patterns, and BOOSTMODE override (MCFS – Menu Controlled Flow Sequencer)
• Comprehensive safety functions including dry-run warning and temperature alert
  Soft startup
• Auxiliary connetor for external peripherals and controllers
• High-quality IP65 motor cable connector
• Low-noise operation
• Choice of 3 m or 10 m cable length
• 120V version
• Lockable power cord
• Discharge can be positioned in multiple directions

The Abyzz A200 IPU DC Water Pump introduces a high performance solution designed for environments where durable construction and precise flow control are required. Built with a titanium impeller and supported by a sine wave controlled three phase motor, the device offers smooth operation and impressive efficiency. Its IP65 rated splash proof controller distinguishes it from the standard model, providing resilience around aquariums and ponds. Adjustable pump speed settings and an integrated bearing flushing system further support long operational life and optimized performance.

The device incorporates silicon carbide bearings and a hard metal shaft that contribute to reduced maintenance for aquarium water pump setups. Users can access multiple flow modes including waves, bursts, random cycles, and BOOSTMODE for flexible system tuning. Quiet running behavior and an auxiliary connector enhance everyday usability in installations built around an electric water pump. A lockable power cord, horizontal mounting requirement, and multiple discharge orientations add practical versatility, while optional cable lengths help accommodate different layouts.

Engineered from long lasting materials and equipped with dry run and temperature alerts, the device suits freshwater and marine displays as well as ponds and commercial aquatic systems. Its soft startup, high efficiency motor, and thoughtful programming capabilities provide a strong combination of performance and control for varied applications. The Abyzz A200 IPU DC Water Pump

Specifications:

• Model: A200 IPU
• Alternate Part Number: 90003010
• Maximum flow rate: 4,500 gph (17,000 l/h)
• Rated flow rate: 3,800 gph (14,500 l/h)

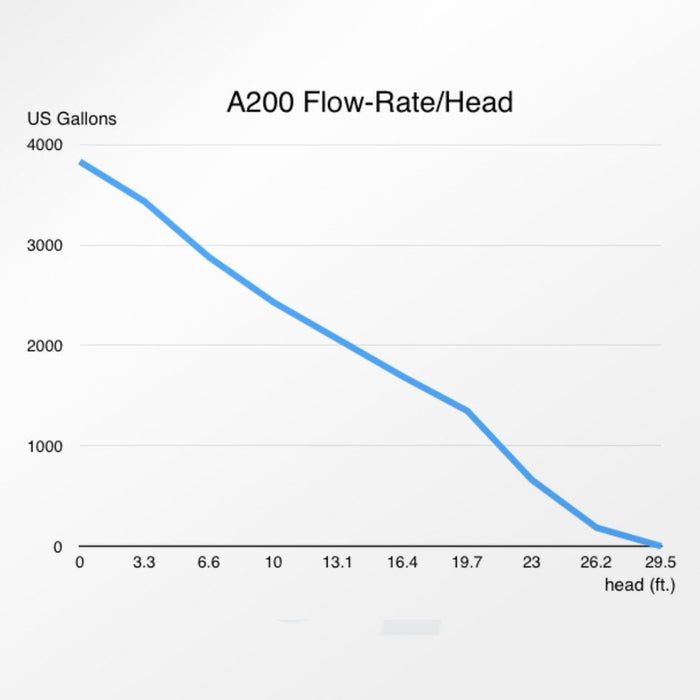

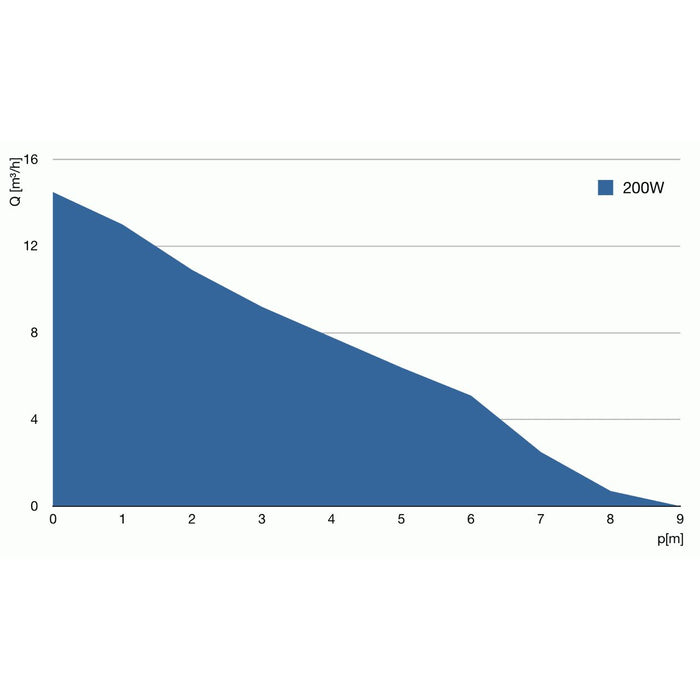

• Delivery height: 28.8 ft (8.8 m)
• Max. discharge speed: 19 ft/s (5.8 m/s)

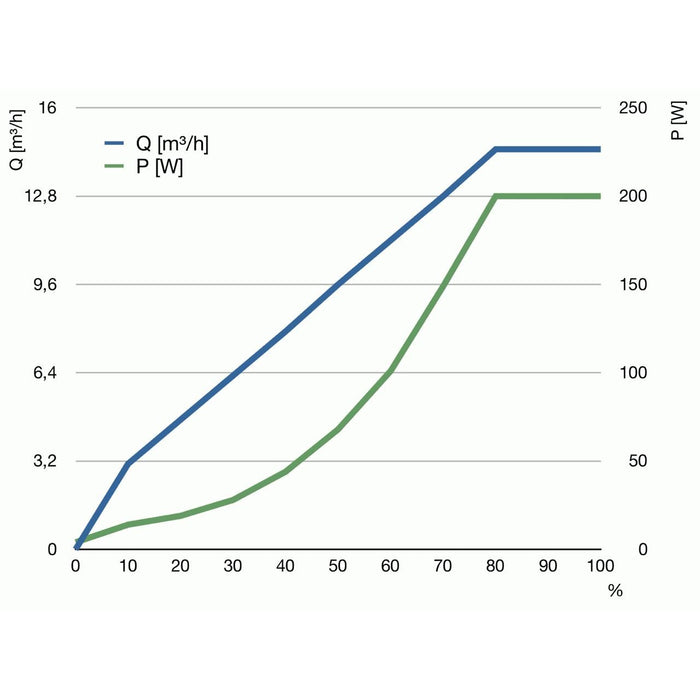

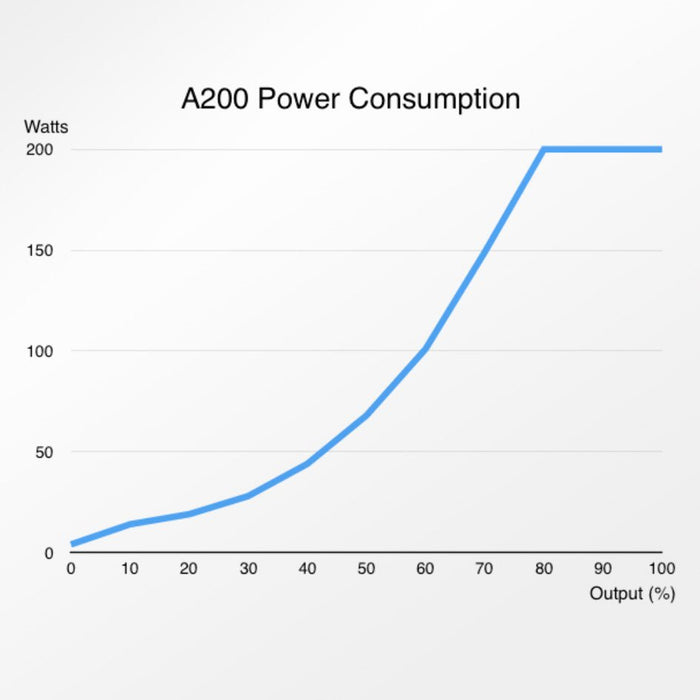

• Power consumption: 4–200 W
• Operating voltage: 120 V
• Operating frequency: 50–60 Hz
• Maximum operating pressure: 17.4 psi (1.2 bar)
• Maximum immersion depth: 6.5 ft (2 m)
• Pump ambient temp.: 34–122 °F (1–50 °C)
• Driver ambient temp.: 32–86 °F (0–30 °C) (without additional cooling)
• Pump cable length (optional): 10or 30 ft (3 or 10 m)

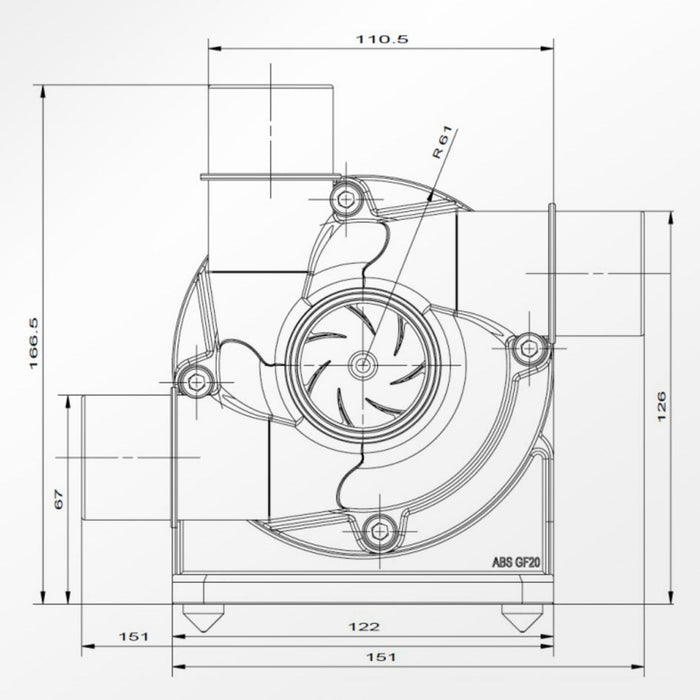

• Inlet/outlet connections (metric): 50/40 mm

• Warranty: 10 years (Must be registered with Abyzz within 4 weeks of purchase). If not registered, the warranty period is 1 year.


Best for:

• Freshwater and seawater aquaristics
• Pond filter systems
• Creeks
• Water features
• Commercial applications
