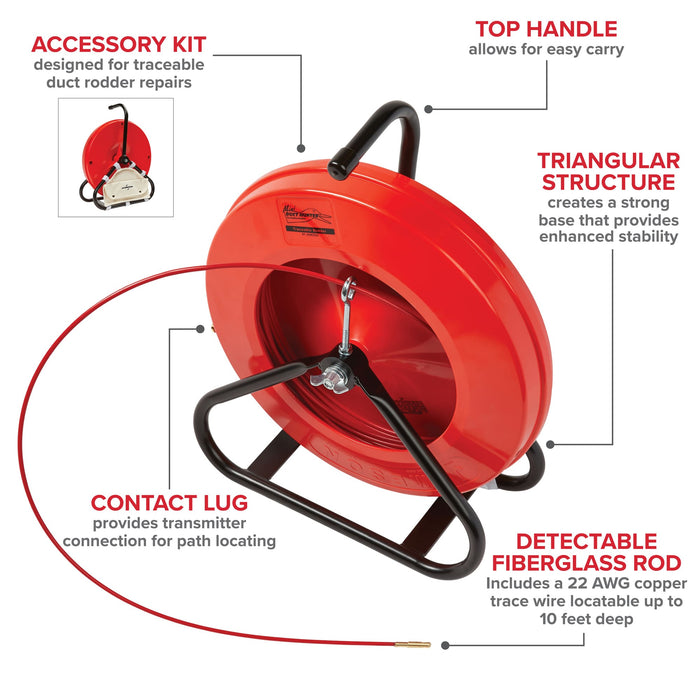

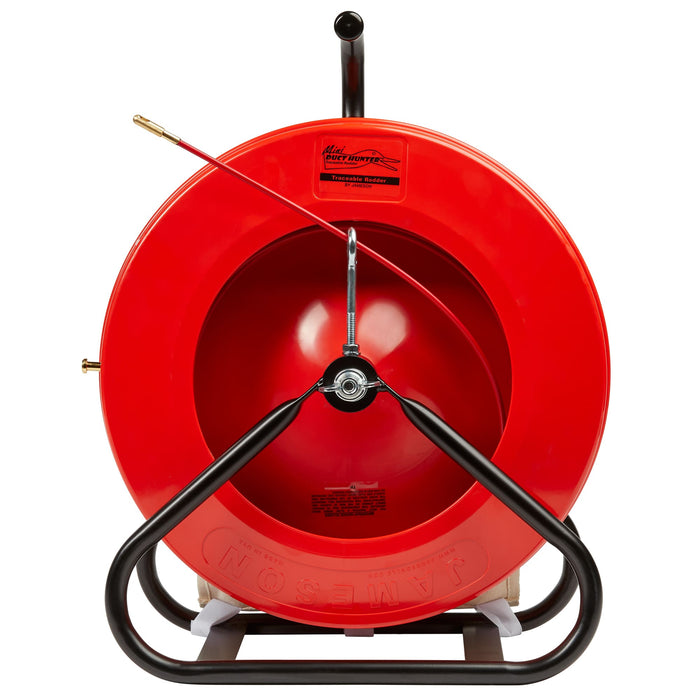

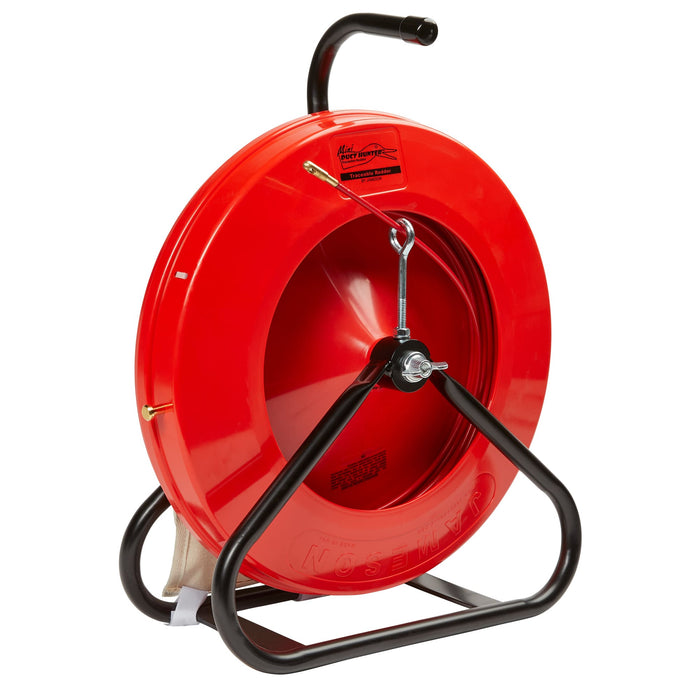

Jameson 15-316-200 Mini Duct Hunter Rodder (3/16" x 200', Traceable)

Highlights:

• 200 ft. of 3/16 in. Traceable fiberglass rod
• With 22 AWG copper trace wire for locating & mapping underground ducts & pipes.
• Non-invasive tracing for 1/2 to 1-1/2 in. I.D. conduit.
• Detectable depth up to 10 ft.
• Suitable for tracing sewer laterals up to 4 in. diameter to help avoid cross bores
• Helps locate fiber optic cable in plastic pipe without tracer wire and micro-duct in FTTH applications.

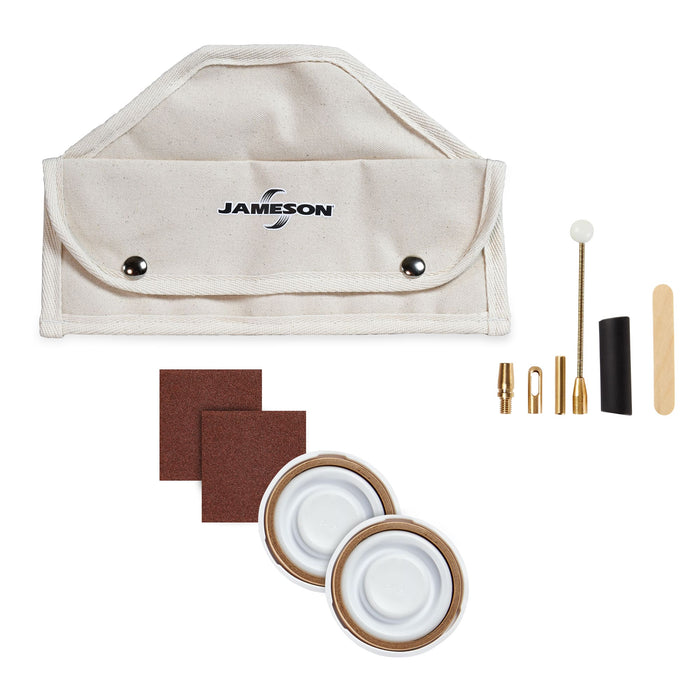

• Includes accessory kit for ready-to-use deployment.

Features:

• 2.5 in. bend radius

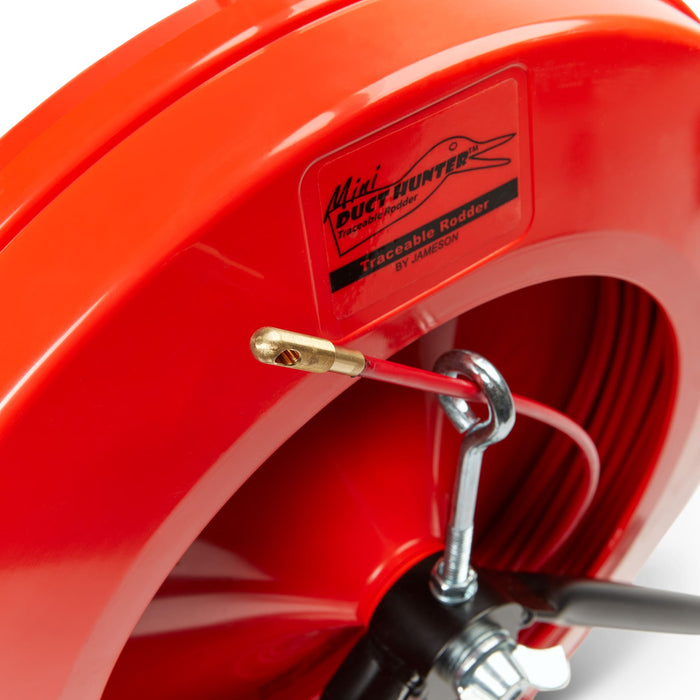

• Signal radiates to the surface when the energized rod is pushed into pipe

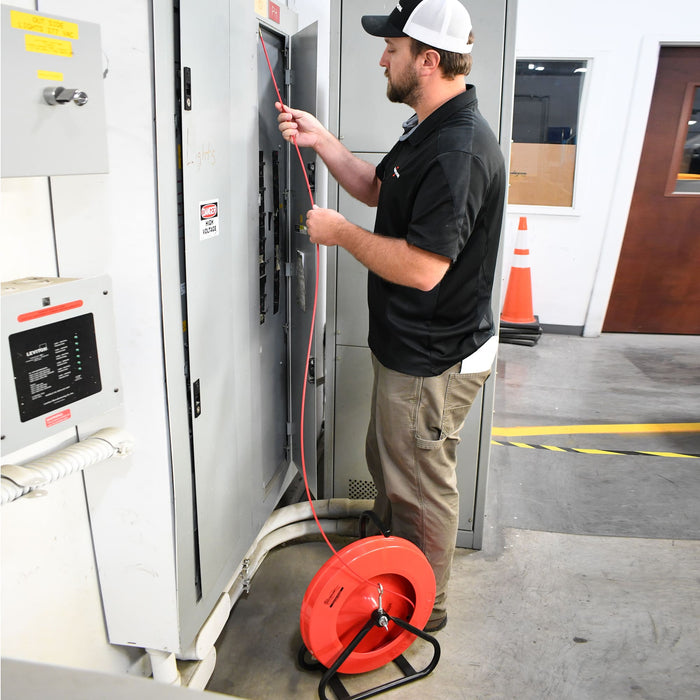

• Compatible with signal receivers to trace pipe inside walls, floors, or underground
• Fiberglass rod resists rust in plumbing applications

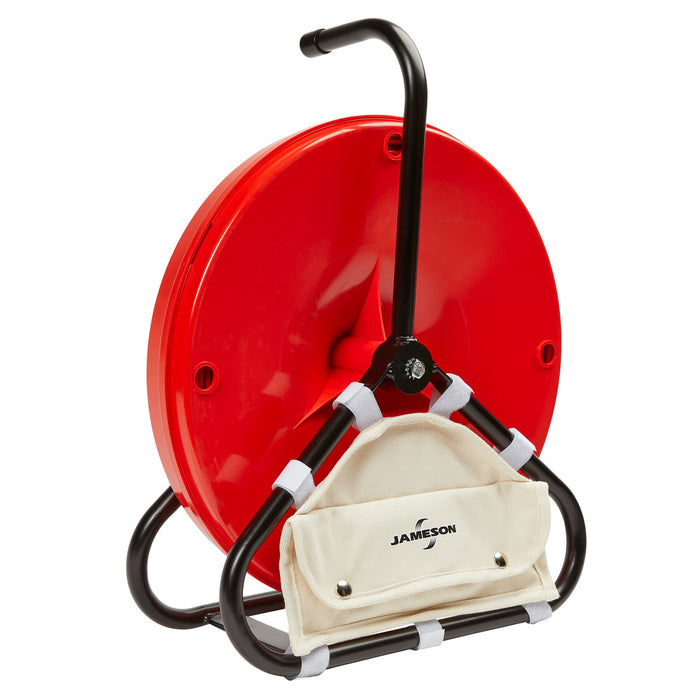

• Lightweight frame with handle for easier transport
• Designed for ducts and pipes measuring 1/2 to 1-1/2 in. in diameter

The Jameson 15-316-200 Mini Duct Hunter Rodder is designed for locating and tracing underground ducts and pipes, featuring a 200 ft. fiberglass rod with an integrated copper trace wire. Its 3/16 in. diameter supports use in 1/2 in. to 1-1/2 in. conduit, allowing precise navigation through smaller pathways while enabling non-invasive tracing in utility and fiber installations.

Built for accurate detection, the rodder includes a 22 AWG copper trace wire that radiates a signal to the surface when energized, making it compatible with standard signal receivers for locating pipes within walls, floors, or underground. The rodding reel supports lightweight handling and transport, while the fiberglass construction resists rust. With the ability to trace sewer laterals up to 4 in. in diameter and detect depths up to 10 ft.,  it supports mapping and identification tasks in fiber optic and micro-duct applications where tracer wire may not be present. A 2.5 in. bend radius allows movement through tight turns, and the included accessory kit supports immediate deployment.

Compact dimensions of 22 in. x 17 in. x 7 in. support portability, while the lightweight frame with handle allows easier transport between job sites. Designed for smaller conduit systems and precise tracing work, the The Jameson 15-316-200 Mini Duct Hunter Rodder offers control, visibility, and efficient handling for underground locating tasks.

Specifications:

• Part Number: 15-316-200
• Rod Length: 200 ft. (60.96 m)
• Rod Diameter: 3/16-inch (4.8 mm)
• Rod Material: Fiberglass with 22 AWG copper trace wire
• Detection Distance: 10 ft (3.04 m)
• Bend Radius: 2.5″ (64 mm)
• Ideal for Conduit: With Inside Diameter 1/2 to 1-1/2 inch (12.7 to 38.1 mm)
• Included: Accessory Kit
• Dimensions: 22″ × 17″ × 7″ (559 × 432 × 178 mm)
