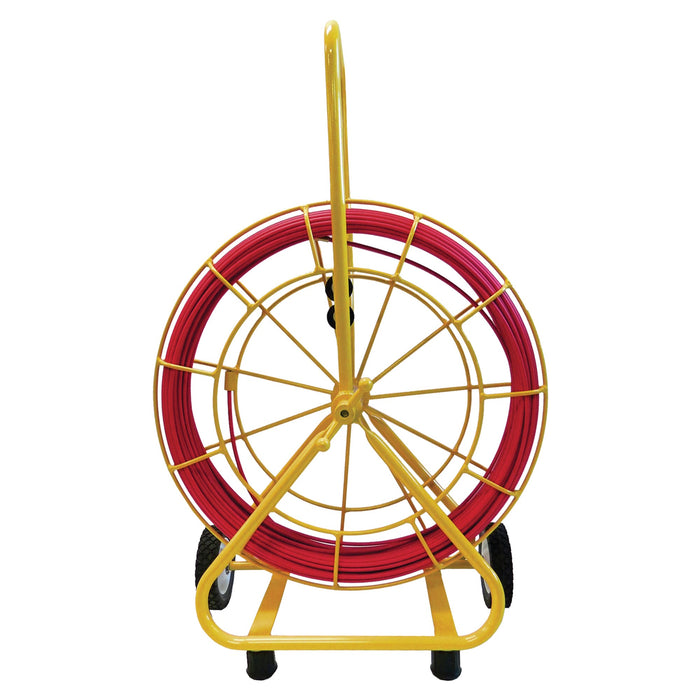

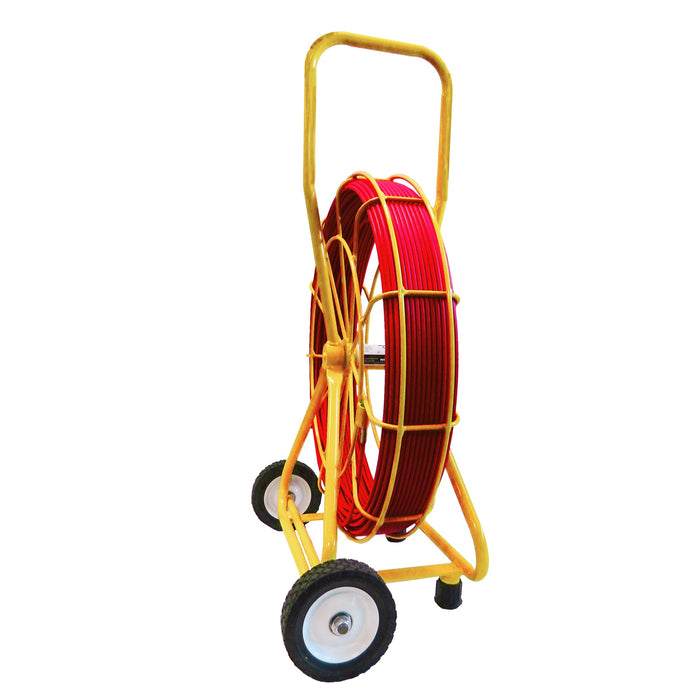

Jameson 16-14-300M Duct Hunter Rodder (1/4" x 300', Traceable. 5' Marks)

Highlights:

• 300 ft. of 1/4 in. Traceable fiberglass rod
• With copper trace wire
• Rod marked every 5 ft. with metric markings every 1 m
• Used For:
  • Non-invasive locating and mapping of underground ducts and pipes
  • Locating sewer laterals and confirm no cross bore has occurred
  • Locating ductile iron, plastic, tile, and concrete pipe
  • Use in conduit with a 1 - 2 in. inside diameter
• Detectable at depths up to 10 ft. when energized with a signal transmitter and traced with a hand-held receiver


Features:

• 4 in. bend radius

• Supports full-line tracing using an electromagnetic signal
• Reduces time by helping eliminate digging and trenching
• Includes male end ferrule, pulling eye, and accessory kit attached to the frame

The Jameson 16-14-300M Duct Hunter Rodder uses traceable fiberglass and is designed for accurate underground duct and pipe locating without disruptive excavation. Built with a 300 ft. length of 1/4 in. fiberglass rod and an integrated copper trace wire, the device supports mapping and inspection tasks across a range of conduit types. Clear distance markings every 5 ft. and 1 meter provide consistent measurement reference during operation, while the included accessory kit, pulling eye, and male end ferrule enhance usability in the field.

The rodder is engineered for non-invasive locating and mapping of underground infrastructure, helping identify sewer laterals and confirm the absence of cross bores. The rodding reel is designed to guide the rod smoothly through conduit with a 1 to 2 inch inside diameter, maintaining control and stability. This rodder is capable of tracing ductile iron, plastic, tile, and concrete pipes with accuracy when paired with a signal transmitter and receiver. The rodding reel supports full-line tracing using an electromagnetic signal, enabling detection at depths up to 10 ft. while minimizing unnecessary digging.

With a 4 in. bend radius and durable fiberglass construction, the system offers flexibility and strength for demanding field conditions. Its compact frame dimensions and organized accessory integration support transport and storage efficiency. The Jameson 16-14-300M Duct Hunter Rodder delivers sold performance for anyone focused on underground utility location and verification jobs.

Specifications:

• Part Number: 16-14-300M
• Rod Length: 300 ft (91.44 m)
• Rod Diameter: 1/4-inch (6.35 mm)
• Rod Material: Fiberglass with copper trace wire
• Detection Distance: 10 ft (3.04 m)
• Bend Radius: 4″ (101.6 mm)
• Ideal for Conduit: With inside diameter between 1 - 2 inch (25.4 to 50.8 mm)
• Markings: Marked every 5 ft (1.52 m) and 1 m
• Included: Accessory Kit
• Dimensions: 36.25″ x 24″ x 13″ (921 x 610 x 330 mm)
