Kukko 223-1 Dowel Pin Puller (1mm - 8mm pins)

Highlights:

• Made In Germany.

• For: extraction of dowel pins, locating pins, centering pins & more.
• Adjustable chuck can extract pins between 1mm - 8mm in diameter.

• Uses a 1lb slide hammer weight.

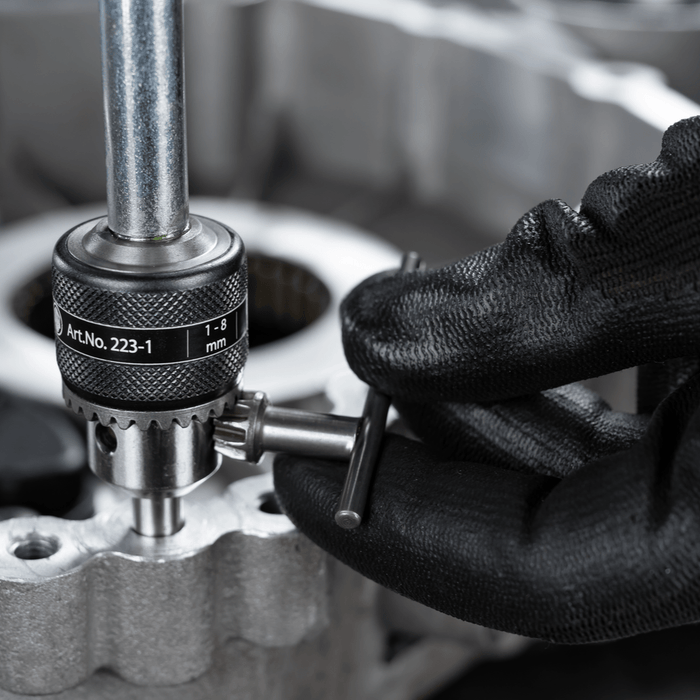

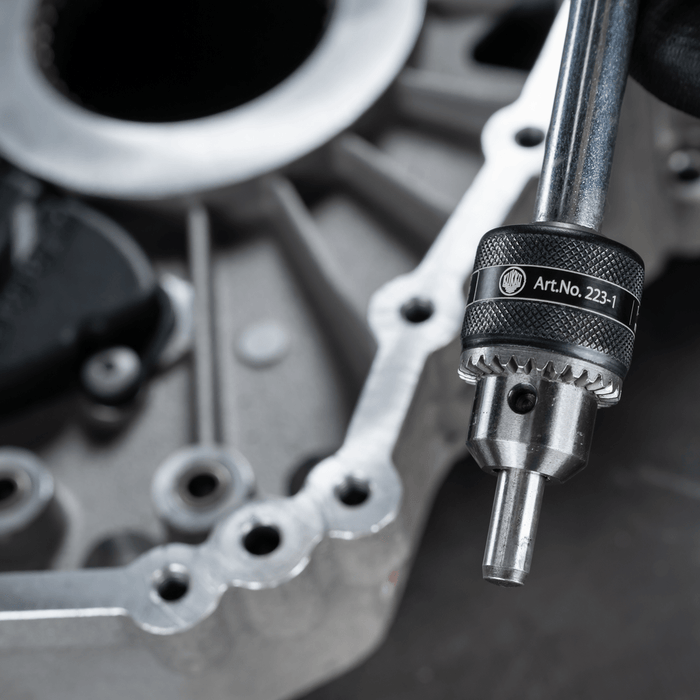

The Kukko 223-1 dowel pin puller is designed for removing locating, centering, and smooth dowel pins from 1 mm to 8 mm using a 1 lb slide hammer. Its adjustable drill chuck, combined with a shaped sliding piece and internal stop, enables controlled impact while preventing pin damage. A two-component handle onthis dowel pin extractor tool supports grip in oily conditions, and the impact weight can be reversed for tight spaces. Built in Germany with corrosion-resistant KUKKoating, this tool delivers high strength and longevity. The Kukko 223-1 dowel pin puller is a great solution for various pin extraction needs.

Features:

• The sliding piece's shape allows strong impact with easy use.
• An internal stop prevents crushing for safe operation.
• If not enough space is available the impact weight can be reversed.
• The 2-component handle ensures maximum power transfer even with wet and oily hands.
• Drill chuck key guarantees maximum clamping force
• Also great for extracting smooth dowel pins

Kukko Advantage:

• Strong design, high performance and long service life.
• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).


Specs:

• Clamping diameter: 1 - 8 mm (1/32 - 5/16 in)
• Total Length: 395 mm (15 9/16 in)
• Impact stroke: 200 mm (7 7/8 in)
• Impact weight: 0.5 kg (1.1 lb)
• Weight: 1 kg (2.2 lb)
• Compliance: REACH, RoHS, POP, PROP65, TSCA
