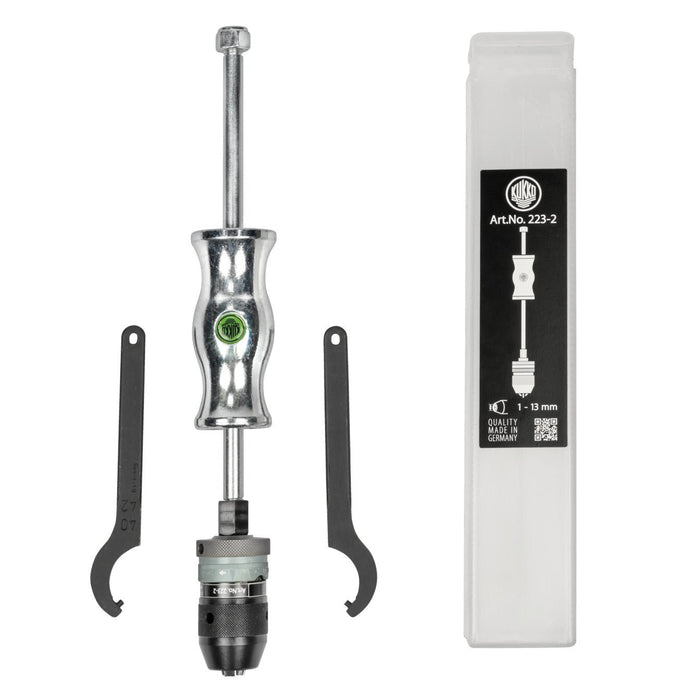

Kukko 223-2 Dowel Pin Puller (1mm - 13mm pins)

Highlights:

• Made In Germany.

• For: extraction of dowel pins, locating pins, centering pins & more.
• Adjustable chuck can extract pins between 1mm - 13mm in diameter.

• Uses a 2.2 lb slide hammer weight.


The Kukko 223-2 Dowel Pin Puller is designed for removing various types of press-fit pins in mechanical assemblies. Manufactured in Germany, it supports precise extraction with minimal risk of part damage thanks to its balanced slide hammer and internal stop design.

This dowel pin extractor tool handles diameters from 1 mm to 13 mm using an adjustable chuck, making it compatible with dowel pins, locating pins, centering pins and more. The 2.2 lb slide hammer delivers a consistent impact, and its shape is optimized for ease of use. The included hook wrenches provides secure clamping of the chuck onto the part. In tighter spaces, the hammer can be reversed to maintain effectiveness without compromising safety. This dowel pin extractor tool allows for strong, repeatable pin removal without deforming workpieces.

Galvanized parts feature KUKKoating, offering corrosion protection without chromium VI. The Kukko 223-2 Dowel Pin Puller includes durability-focused features to support long-term performance in varied mechanical settings.

Features:

• The sliding piece's shape allows strong impact with easy use.
• An internal stop prevents crushing for safe operation.
• If not enough space is available the impact weight can be reversed.

• Hook wrenches for the chuck guarantee maximum clamping force
• Also great for extracting smooth dowel pins

Kukko Advantage:

• Strong design, high performance and long service life.
• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).


Specs:

• Clamping diameter: 1 - 13 mm
• Total Length: 395 mm (15 9/16 in)
• Impact stroke: 250 mm (9 13/16 in)
• Impact weight: 1 kg (2.2 lb)
• Weight: 2.13 kg (4,697 lb)
• Compliance: REACH, RoHS, POP, PROP65, TSCA
