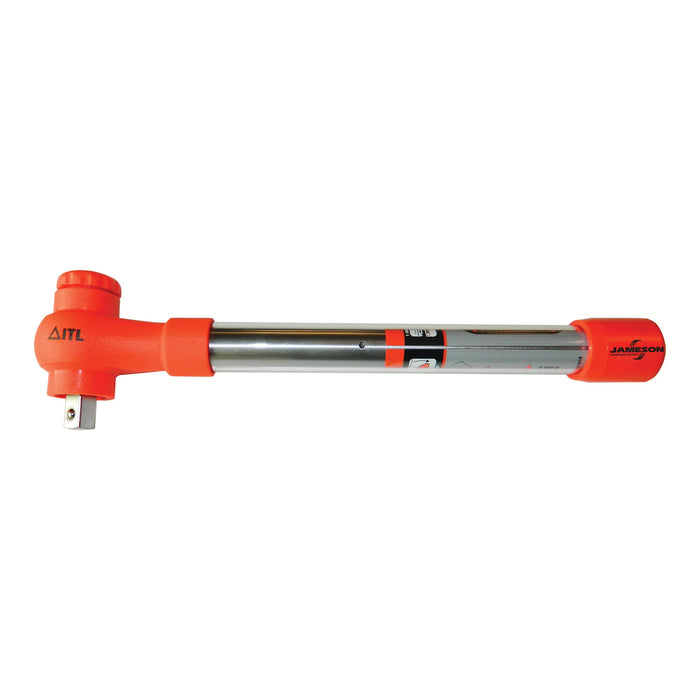

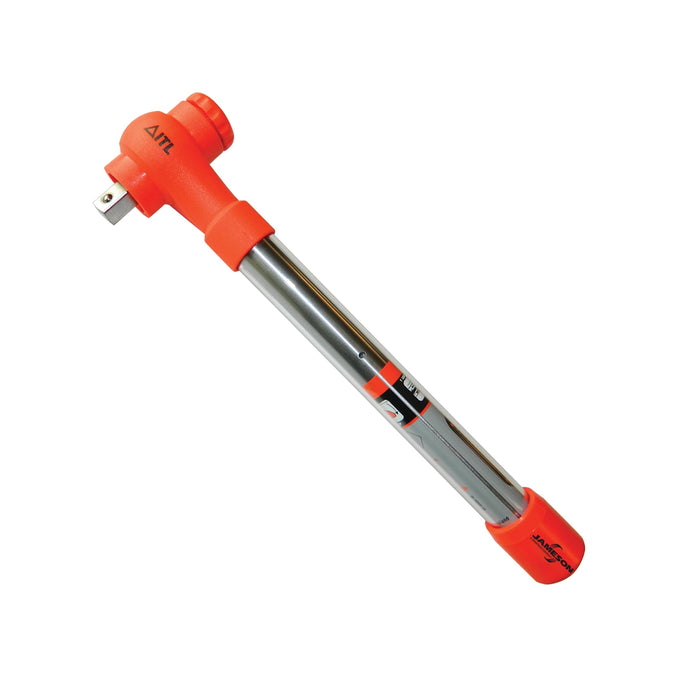

Jameson JT-ST-01785 Insulated Torque Wrench (3/8" drive)
Highlights:
- 1,000-volt rated for live line work on or near energized parts
- 3/8 in. drive with reversible head & adjustable torque 9.0–44.0 lb-ft (12.0–60.0 Nm)
- ±3% torque accuracy
- Heavy-duty Nylon 11 injection-molded insulation for maximum protection
- Tested to 10,000 volts and complies with IEC 60900:2012 and ASTM F1505
- Industry-leading lifetime limited warranty
Features:
- Designed for utility, electrical, and telecommunication applications
- Great for working live or close to live parts at nominal voltages up to 1,000 volts
- Cut-, abrasion-, and impact-resistant construction
- Withstands temperatures from -40° F to 158° F (-40° C to 70° C)
- Meets CAT “C” cold impact rating requirements
- 100% inspected for quality assurance
The Jameson JT-ST-01785 Insulated Torque Wrench is a precision fastening tool designed for controlled torque application on or near energized equipment across utility, electrical, and telecommunication work. Rated for 1,000 volts and tested to 10,000 volts, the device meets IEC 60900:2012 and ASTM F1505 standards for compliance and performance. Its 3/8 inch drive and reversible head support versatile use, while the adjustable torque range of 9.0 to 44.0 lb-ft enables accurate fastening across a variety of applications. Injection-molded Nylon 11 insulation enhances durability and protection in harsh environments.
Included in our growing lineup of insulated tools; this torque wrench as a solution for applying consistent torque in live line conditions. Designed with ±3% torque accuracy, it supports precise fastening with little variation across repeated use. Its construction resists cuts, abrasion, and impact, helping maintain performance in field conditions while supporting safe operation near energized components.
Built for long-term use, the wrench performs reliably in temperatures ranging from -40°F to 158°F and meets CAT “C” cold impact requirements. Each unit is fully inspected to support quality assurance and consistent output in the field. Backed by a lifetime limited warranty, the Jameson JT-ST-01785 Insulated Torque Wrench provides a durable and accurate solution for controlled fastening tasks.
Specifications:
- Part Number: JT-ST-01785
- Drive Size: 3/8 in. (9.53 mm)
- Head Type: Reversible
- Torque Range: 9.0 – 44.0 lb-ft (12.0 – 60.0 Nm)
- Accuracy: ±3%
- Voltage Rating: 1,000 V
- Test Voltage: 10,000 V
- Standards: IEC 60900:2012; ASTM F1505
- Material: Injection molded Nylon 11
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Durability: Cut, abrasion, and impact resistant
- Cold Rating: Meets CAT “C” cold impact requirements
- Warranty: Lifetime limited
