Kukko K-2030-10+S-T 2 & 3 Jaw Puller Set (0mm - 130mm. QA + xNarrow)

Highlights:

• Made In Germany.
• Extremely Narrow Jaws: perfect for pulling parts in very tight spaces.
• ARMLOCK: Cross-legged jaws for maximum stability by suspending the jaws in the slider.
• GLIDE & FIX: The improved geometry guarantees quick and easy movement of the jaws on the cross-beam.
• QUICK ADJUST (QA): The knurls (red knobs) allow the jaws to be quickly released and moved on the cross-beam without the need for tools.
• Switch: A two-sided spindle tip provides optimal adjustment of the spindle to the shaft.

• Great for the removal of bearings, gears, discs, and other parts in very tight places.

The Kukko K-2030-10+S-T 2 & 3 Jaw Puller Set provides a modular approach to component extraction with a focus on control and tight-space access.

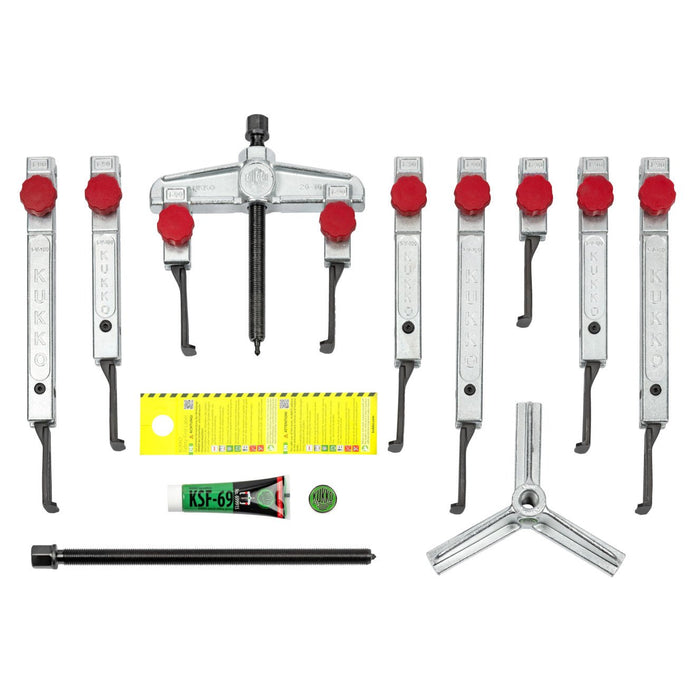

This bearing puller set includes extremely narrow pulling jaws in several lengths, jaw extensions, and two- or three-jaw configurations to adapt to different jobs. The puller arms slide easily on the cross-beam using GLIDE & FIX geometry and can be repositioned quickly with the red QUICK ADJUST knurls. The ARMLock mechanism keeps jaws stable under load, while the dual-tip spindle offers secure alignment to various shaft ends. With up to 350 mm clamping depth and a 130 mm outer span, this tool works well for removing parts like bearings, discs, or gears where space or grip variation requires flexibility. The jaws grip parallel in every position, even under full load, and can be turned for internal or external pulling.

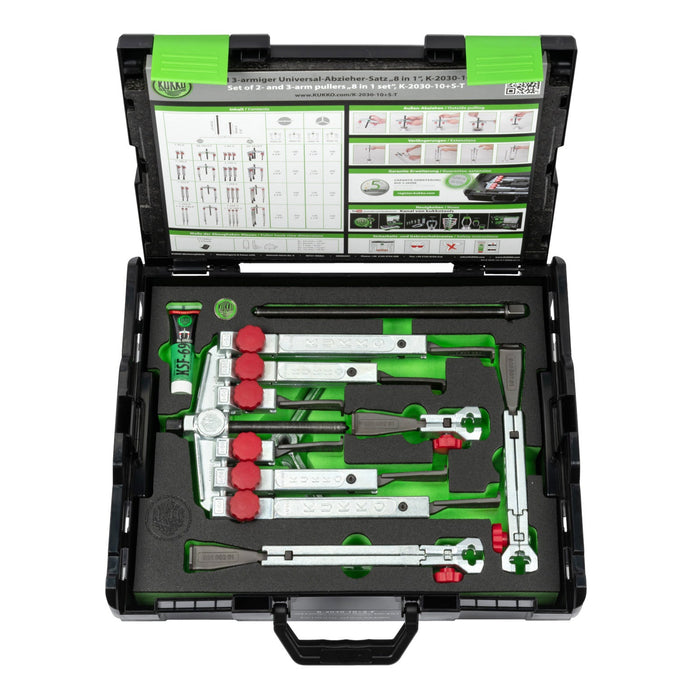

This complete set is packed in a foam-lined KUKKO-L-Boxx and includes instructions and chip-code registration. Designed for high load stability and ease of use, the Kukko K-2030-10+S-T 2 & 3 Jaw Puller Set is built for precision removal in complex settings.

 Features:

• 8 in 1 kit in the tried-and-tested KUKKO-L-Boxx-System.
• The set facilitates the assembly of eight different pulling device models through the combination of pulling jaws and extensions.
• Flexibility assured thanks to two-arm or three-arm design.
• Thin pulling jaws in various lengths with quick-adjusting capability.
• Jaw extensions.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
• Short and long mechanical pressure screws.
• Milled thread treated with special coating.
• If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
• Instructions on the cover.
• Secure storage in special foam.
• Personal KUKKO-Chip-Code.

Kukko Advantage:

• Practical package for universal use.
• The thin pulling hooks are suitable for narrow, difficult-to-access locations.
• A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
• Variable reach thanks to optional jaw extensions.
• Can be installed on various pulling hooks.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• 2-arm cross bar with hexagonal profile for good grip.
• Spindle head band prevents the wrench from slipping off.
• Almost all components available as replacement parts, time-saving order process thanks to numbering system.
• Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
• Stability support from optional series 219 clamp.
• Complete easy-to-manage package.
• KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

Specs:

• Diameter of fork opening (outer pull-off span): 0 – 130 mm (0 – 5 1/8 in)
• Clamping Depth (max.): 350 mm (13 3/4 in)
• Inner pull-out span (min. – max.): 70 – 180 mm (2 3/4 – 7 1/16 in)
• Width across flats, hexagon socket: 17 mm (11/16 in)
• Max tensile force: 30 kN
• Max tractive force: 3 t (3.31 US t)
• Weight: 8.91 kg (19.51 lb)
• Compliance: REACH, RoHS, POP, PROP65, TSCA
