Lowell Model 73 Ratchet Clutch (3 variants)
Features:
- Important: Lead time on this item is currently about 3 weeks. Please contact us for the most accurate info.
- 100% Made in the USA
- Lubrication is recommended after every 1200 hours of operation
- Mounting holes provided in body
- Keyways are per ANSI/ASME B17.1
- Fully locked neutral position
- Free running neutral position available on request
- Durable, cast iron construction

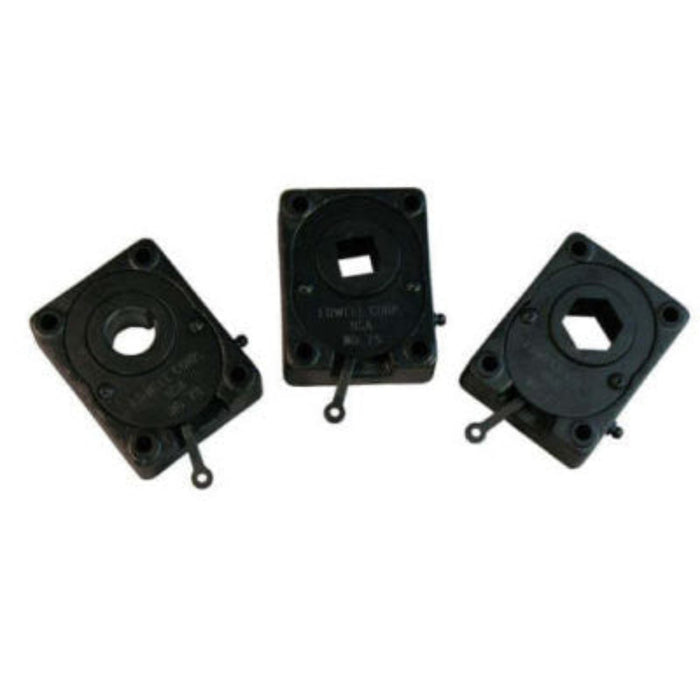

- Ratchet clutch available in 3 sizes

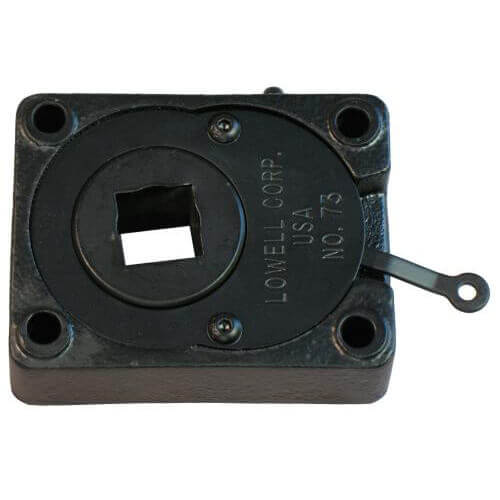

- 1" Square

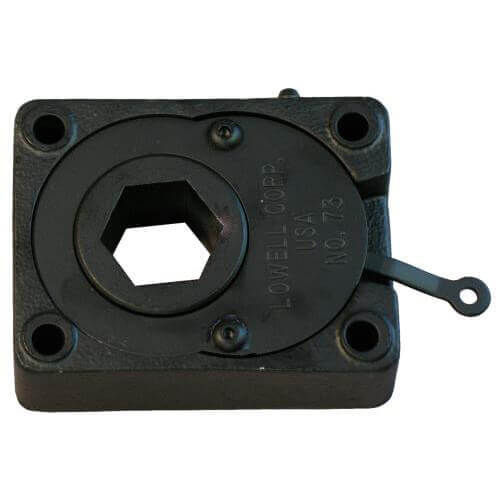

- 1" Hex

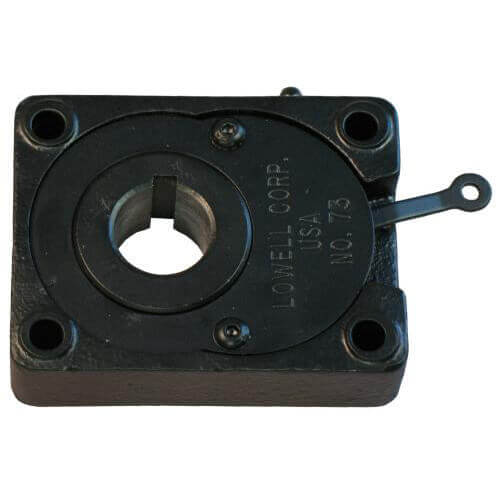

- 1" Bore
The Lowell Model 73 Ratchet Clutch is a cast iron clutch designed for industrial applications requiring controlled ratcheting operation. Available by default with a fully locked neutral position and a free-running neutral position is available upon request. Made entirely in the USA, the unit includes mounting holes in the body for installation.
This reversible free-wheel clutch incorporates keyways manufactured to ANSI/ASME B17.1 specifications. Lubrication is recommended after every 1,200 hours of operation to support ongoing performance and maintenance planning. Its cast iron construction provides a durable housing suited to repeated mechanical operation. With three available size options, users can select the configuration that matches their equipment without changing the core clutch design.
Mounting provisions integrated into the body help simplify installation, while the specified lubrication interval provides a clear maintenance reference for operators. These practical design characteristics make The Lowell Model 73 Ratchet Clutch a straightforward choice for compatible ratcheting systems.
Specifications:
- Overall Length: 4"
- Overall Width: 3-1/8"
- Weight: 3-1/2 lbs
- Max Torque: 500 lb-ft
- Overruning speed: 100 rpm
- Material: Cast Iron, Steel
