Jonard Tools UTST-1860 Large Cable Stripper (0.5"-2.5")

Ask a Question
Brand: Jonard Tools
SKU UTST-1860
$574.95 - $574.95
$574.95
$574.95 - $574.95
$574.95
Request a quote

Highlights:

  • Adjustable utility cable stripper for 600V to 35kV primary and secondary cables.
  • Handles cable diameters from 0.5" to 2.5" (12.7 mm to 63.5 mm).
  • Performs both mid-span and end stripping for versatile field use.
  • Selectable cutting modes: radial, small spiral, and large spiral cuts.
  • Adjustable blade depth helps improve precision across jacket and insulation types.
  • Includes hard case, removable handle, and strip stop bar.
  • Lightweight aluminum body

Features:

  • Strips PVC, PE, and HDPE cable jackets.
  • Compatible with PE and XLPE insulation materials.
  • Blade angle knob switches between 0°, 10°, and 20° cutting positions.
  • Removable handle allows easier use in confined spaces.
  • Strip stop rod helps set consistent strip lengths.
  • Designed for overhead, underground, tree wire, and spacer cable applications.

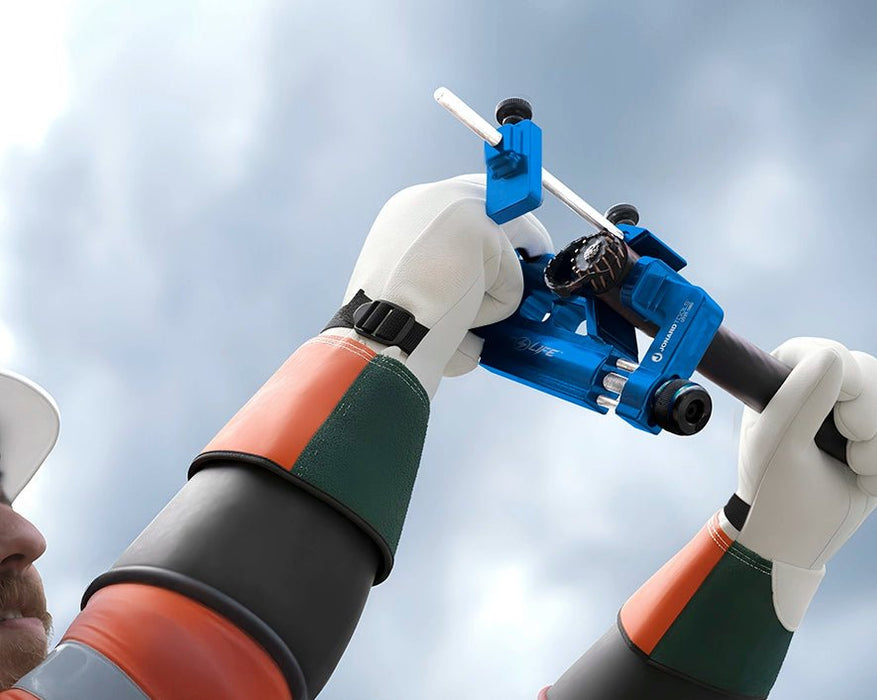

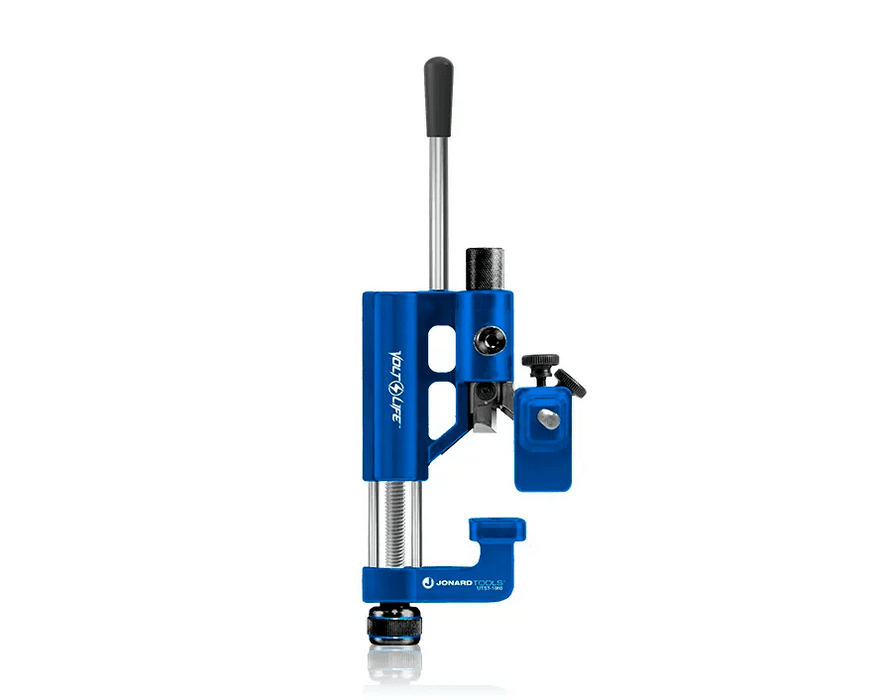

The Jonard Tools UTST-1860 Large Cable Stripper (0.5"-2.5") is an adjustable utility cable stripping tool designed for 600V to 35kV primary and secondary cables. Built for overhead, underground, tree wire, and spacer cable applications, the tool handles cable diameters from 0.5 inch to 2.5 inch, or 12.7 mm to 63.5 mm. It supports both mid-span and end stripping, making it suitable for jacket and insulation removal across varied field conditions.

This cable stripper works with PVC, PE, and HDPE cable jackets, as well as PE and XLPE insulation materials. Its selectable cutting modes allow radial, small spiral, and large spiral cuts for controlled stripping based on the application. An adjustable blade depth from 0.0 inch to 0.51 inch, or 0 mm to 13 mm, helps improve precision across different jacket and insulation thicknesses. The blade angle knob switches between 0°, 10°, and 20° cutting positions, while the removable handle supports easier use in confined spaces.

A strip stop rod helps set repeatable strip lengths, and the lightweight aluminum body supports easy use. The tool also includes a hard case, removable handle, and strip stop bar for organized transport and setup, making The Jonard Tools UTST-1860 Large Cable Stripper (0.5"-2.5") a versatile option for utility cable preparation.


Specifications:

  • Part Number: UTST-1860
  • Cable Compatibility: Primary Distribution Overhead & Underground, Secondary Distribution, Tree Wire, Spacer Cables
  • Cable Voltage Range: 600V - 35 kV
  • Cable Diameter: 0.5" - 2.5" (12.7 mm - 63.5 mm)
  • Insulation Thickness: 0.06" - 0.42" (1.52 mm - 10.60 mm)
  • Blade Depth: Adjustable: 0.0" - 0.51" (0 mm - 13 mm)
  • Cable Access: Mid-Span, End
  • Removal Method: Radial, Spiral
  • Blade Angle: 0° (Ring/Radial) / 10° (Small Spiral) / 20° (Large Spiral)
  • Body Material: Aluminum
  • Dimensions: 10.5" x 4.75" x 2.6" (26.67 cm x 12.07 cm x 6.60 cm)
  • Weight: 2.5 lb (1.14 kg)
  • UPC: 810132439537
