Abyzz A120 IPU DC Water Pump (2,000 gph)

Highlights:

• Made In Germany.

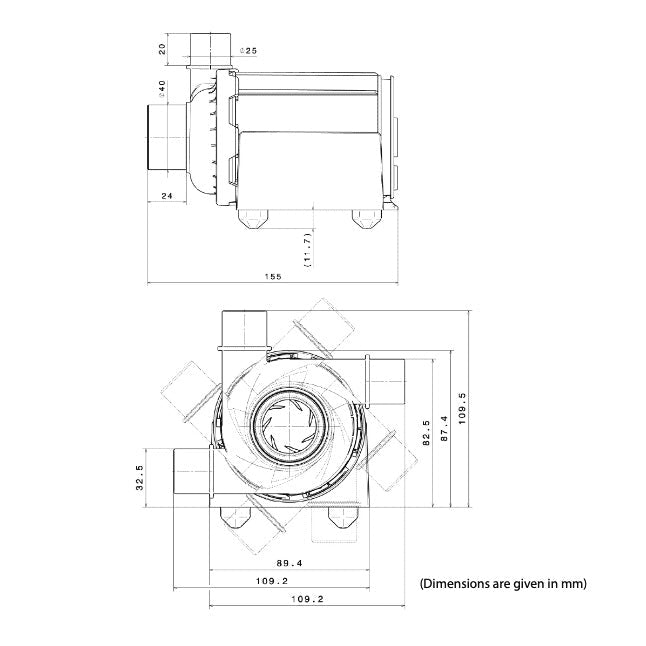

• Compact powerhouse: This low voltage pump measures only 4.3“ x 6.1" (109 x 155 mm), including the feet.
• Reduction of shock risk: with only 12 volts at the motor connector this model is great for environments with potential human or animal contact. Also, the power supply complies with top medical standards for insulation.

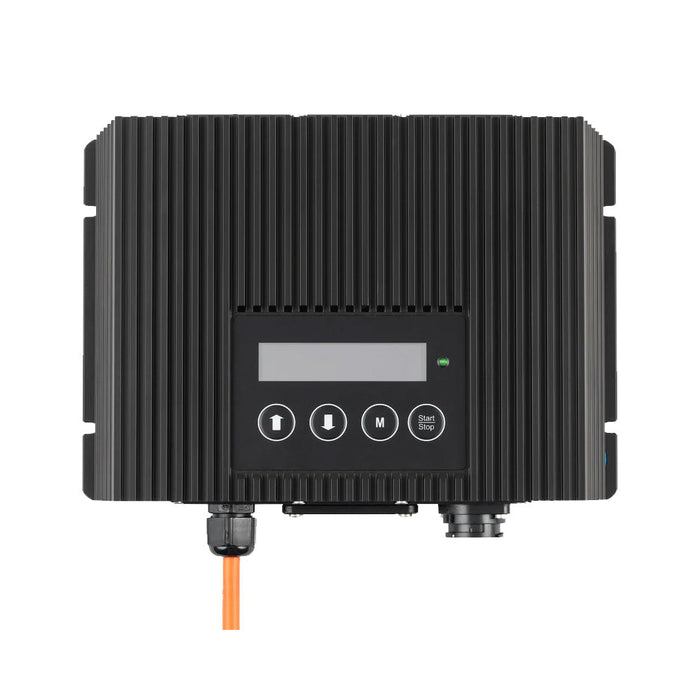

• Includes an IP65-rated splash-proof controller built to withstand the harsh aquatic environments like those around aquariums and ponds.

• Titanium impeller for maximum durability
• Programmable driver with sine-wave–controlled three-phase motor

• Adjustable pump speed for optimized performance and energy savings
• Integrated bearing-flushing system to prevent calcification
• Silicon carbide bearings and hard-metal shaft for long service life and low maintenance
• Constructed from high-grade, long-lasting materials
• Engineered and manufactured in Germany by venotec.
• NOTE: this pump is not self-priming and has to be mounted under water level. Mounting orientation must be horizontal.

Features:

• Variable speed range (0–100%)
• Precise speed adjustment in steps of 0.1%.
• Integrated programming to generate waves, bursts, and random flow patterns with additional BOOSTMODE to override actual programming (MCFS – Menu Controlled Flow Sequencer)
• Comprehensive safety functions such as dry-run warning, temperature alert, overcurrent protection, and zero speed alert.
• Soft startup
• Auxiliary connector for peripheral devices (e.g., interfacing to external controllers)
• High-quality IP65 motor cable connector
• Low-noise operation

• Splash & waterproof driver (IP65)
• Wide range input

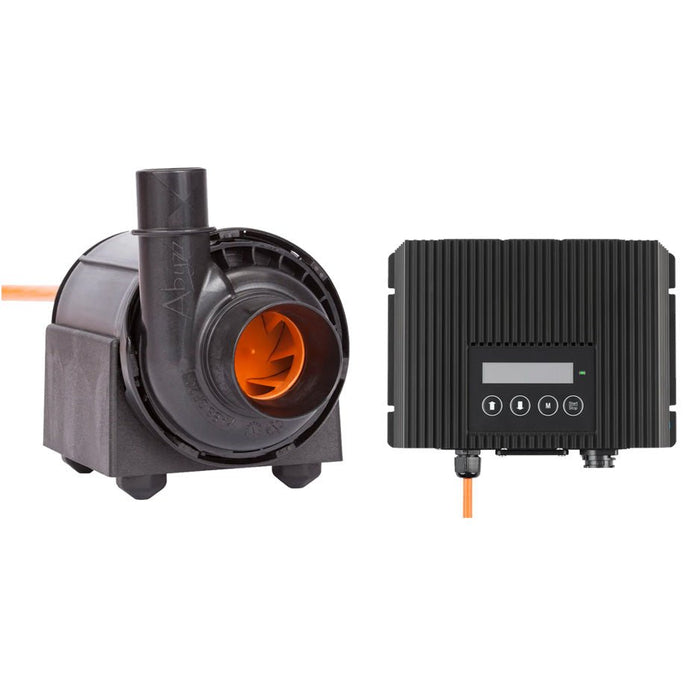

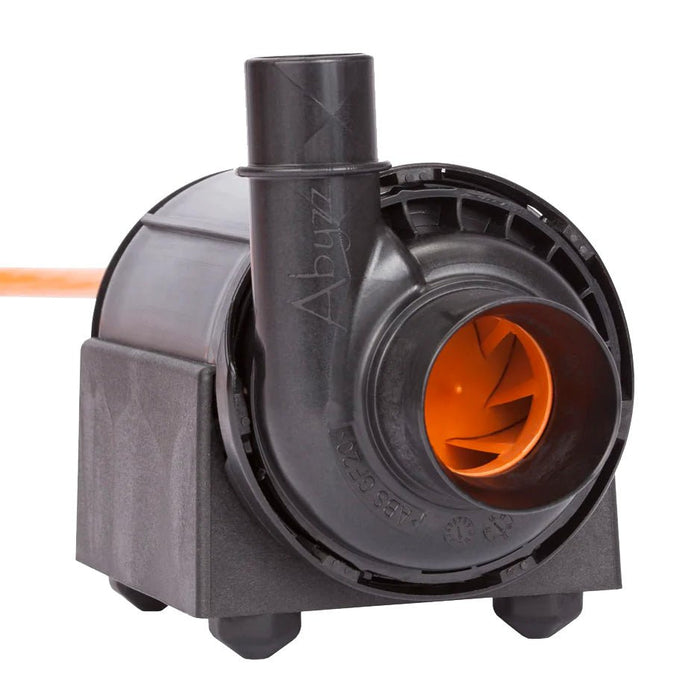

The Abyzz A120 IPU DC Water Pump is a compact powerhouse engineered and manufactured in Germany by venotec to provide high performance in a small footprint. Measuring only 4.3 inches by 6.1 inches including its feet, this model is designed for horizontal mounting below the water level in freshwater or seawater aquaristics, pond filter systems, and water features. The Abyzz A120 IPU DC Water Pump serves as a sophisticated solution for managing flow in creeks or commercial applications while maintaining a low noise profile during operation.

This aquarium water pump utilizes a sine wave controlled three phase motor and a programmable driver to deliver precise flow management. Users can adjust the speed range from zero to one hundred percent in increments of 0.1 percent to optimize energy savings. The integrated menu controlled flow sequencer allows for the generation of waves and random flow patterns. Safety is prioritized through a low voltage motor connector and a power supply that complies with medical standards for insulation. A splash proof IP65 rated controller and motor cable connector ensure durability in harsh environments. The internal titanium impeller and silicon carbide bearings work alongside a hard metal shaft to extend the service life of the unit. An integrated bearing flushing system helps prevent calcification while the motor offers a soft startup and various alerts for dry run or temperature issues.

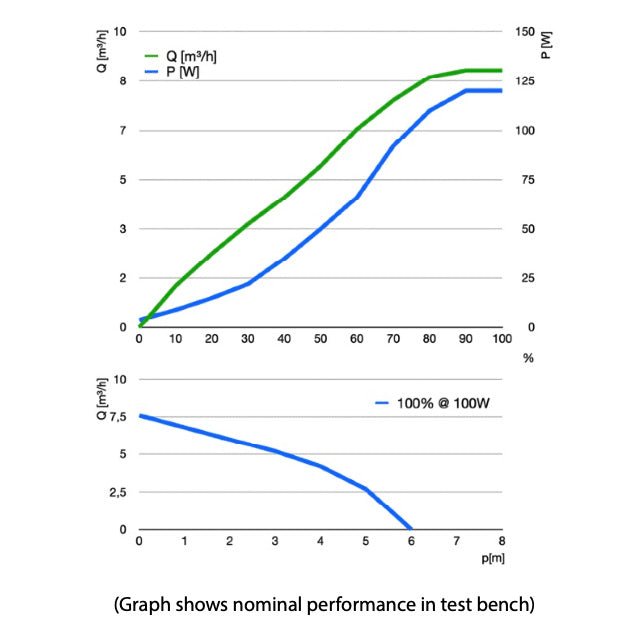

With a maximum flow rate of 2,370 gallons per hour and a delivery height of 19.7 feet, this unit handles significant volume with a power consumption between 4 and 120 watts. The system includes an auxiliary connector for peripheral devices and can operate at a maximum immersion depth of 6.5 feet. Buyers receive a 10 year warranty if the product is registered within four weeks of purchase, providing long term peace of mind for the Abyzz A120 IPU DC Water Pump.

Specifications:

• Model: A120 IPU
• Alternate Part Number:  90010091
• Maximum flow rate: 2,370 gph (9,000 l/h)
• Rated flow rate: 2,000 gph (7,600 l/h)
• Delivery height: 19.7 ft (6 m)
• Max. discharge speed: 19.5 ft/s (5.8 m/s)
• Power consumption: 4–120 W
• Operating voltage: 100–240V~
• Operating frequency: 50–60 Hz
• Maximum operating pressure: 17.4 psi (1.2 bar)
• Maximum immersion depth: 6.5 ft (2 m)
• Pump ambient temp.: 34–122°F (1–50°C)
• Driver ambient temp.: 32–86°F (0–30°C) (without additional cooling)
• Pump cable length: 6ft (2 M)
• Inlet/outlet connections (metric): 40 mm / 25 mm
• Warranty: 10 years (Must be registered with Abyzz within 4 weeks of purchase). If not registered, the warranty period is 1 year.

Best for:

• Freshwater and seawater aquaristics
• Pond filter systems
• Creeks
• Water features
• Commercial applications
