Slingco Galvanized Cable Pulling Swivel (5 Options)

Highlights:

• Great for use with one of our Cable Grips.
• Releases torsion during cable pulling to prevent dangerous torque buildup
• Helps prevent damage to cable or pulling grips during installation
• Designed to high specifications for underground and overhead pulling applications
• Galvanized construction for corrosion resistance and durability
• Stringently quality tested and inspected for optimum reliability and performance

Features:

• Suitable for use in cable and line pulling operations
• Engineered to rotate and dissipate line twist during pulling
• Compatible with both underground and overhead cable installations
• Supports straight-line pulling configurations only

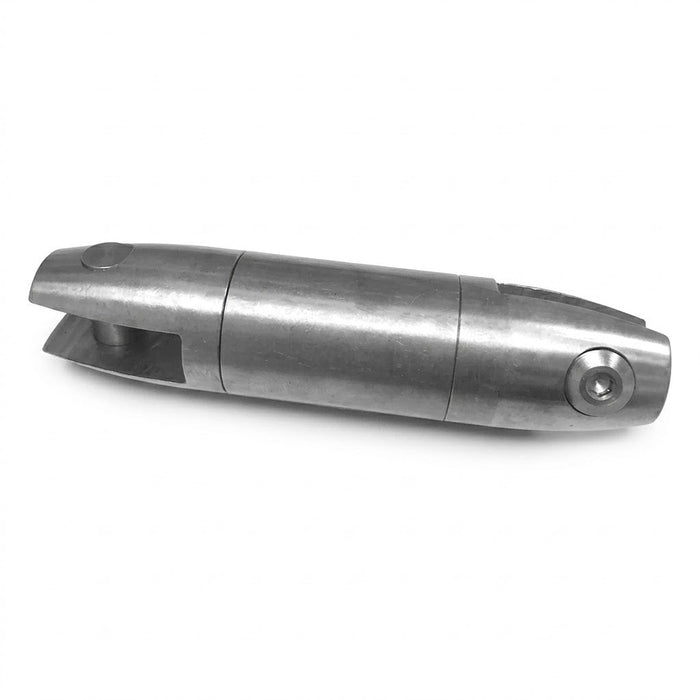

The Slingco Galvanized Cable Pulling Swivel is designed to release torsion during cable pulling by allowing controlled rotation under load. Constructed from galvanized steel, the device provides corrosion resistance and is great for installation tasks in both underground and overhead environments. During pulling operations, line twist can create torque that places strain on cables and installation hardware. The rotating design helps reduce this buildup by allowing the line to turn as tension is applied.

This cable swivel allows line twist to dissipate during pulling operations. This rotation helps protect cable and pulling grips by reducing torsion that can develop when long sections of cable or conductor are being installed. The design supports straight-line pulling configurations. Each unit is quality tested and inspected to support consistent performance during cable and line pulling work.

Multiple models are available to match different pulling requirements. Safe working load capacities range from 4,000 lb to 30,000 lb using a 3:1 factor of safety, with alternate 5:1 ratings from 2,400 lb to 18,000 lb. Depending on the model, overall lengths range from 4.74 inches to 11.13 inches and weights range from 1.01 lb to 10.44 lb. These options allow installation crews to select the appropriate swivel for the pulling setup when using The Slingco Galvanized Cable Pulling Swivel.

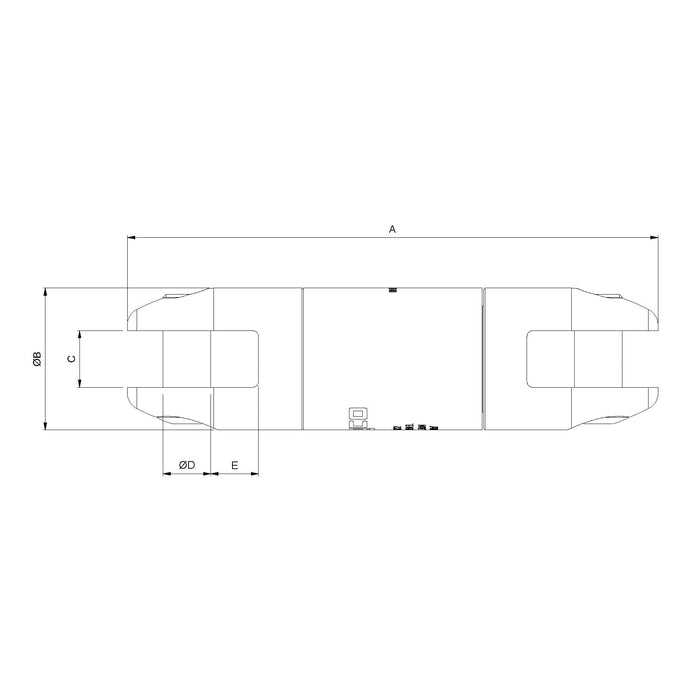

Specifications:

• Part Number: ZSW2649
  • Safe Working Load - 3:1: 4,000 lb (1,814.37 kg)
  • Safe Working Load - 5:1: 2,400 lb (1,088.62 kg)
  • A Length: 4.74 in (120 mm)
  • Ø B: 1.26 in (32 mm)
  • C: 0.61 in (15 mm)
  • Ø D Pin: 0.37 in (9 mm)
  • E Recess: 0.37 in (9 mm)
  • Weight: 1.01 lb (0.46 kg)
• Part Number: ZSW2929
  • Safe Working Load - 3:1: 8,000 lb (3,628.74 kg)
  • Safe Working Load - 5:1: 4,800 lb (2,177.24 kg)
  • A Length: 5.38 in (137 mm)
  • Ø B: 1.5 in (38 mm)
  • C: 0.63 in (16 mm)
  • Ø D Pin: 0.61 in (15 mm)
  • E Recess: 0.43 in (11 mm)
  • Weight: 1.75 lb (0.79 kg)
• Part Number: ZSW6122
  • Safe Working Load - 3:1: 10,000 lb (4,535.92 kg)
  • Safe Working Load - 5:1: 6,000 lb (2,721.55 kg)
  • A Length: 7 in (178 mm)
  • Ø B: 1.87 in (47 mm)
  • C: 0.75 in (19 mm)
  • Ø D Pin: 0.63 in (16 mm)
  • E Recess: 0.63 in (16 mm)
  • Weight: 3.72 lb (1.69 kg)
• Part Number: ZSW6123
  • Safe Working Load - 3:1: 16,000 lb (7,257.48 kg)
  • Safe Working Load - 5:1: 9,600 lb (4,354.48 kg)
  • A Length: 10.2 in (259 mm)
  • Ø B: 2.44 in (62 mm)
  • C: 1 in (25 mm)
  • Ø D Pin: 1.12 in (28 mm)
  • E Recess: 0.87 in (22 mm)
  • Weight: 9.19 lb (4.17 kg)
• Part Number: ZSW2857
  • Safe Working Load - 3:1: 30,000 lb (13,607.77 kg)
  • Safe Working Load - 5:1: 18,000 lb (8,164.66 kg)
  • A Length: 11.13 in (283 mm)
  • Ø B: 2.5 in (64 mm)
  • C: 1 in (25 mm)
  • Ø D Pin: 1.13 in (29 mm)
  • E Recess: 0.87 in (22 mm)
  • Weight: 10.44 lb (4.74 kg)
